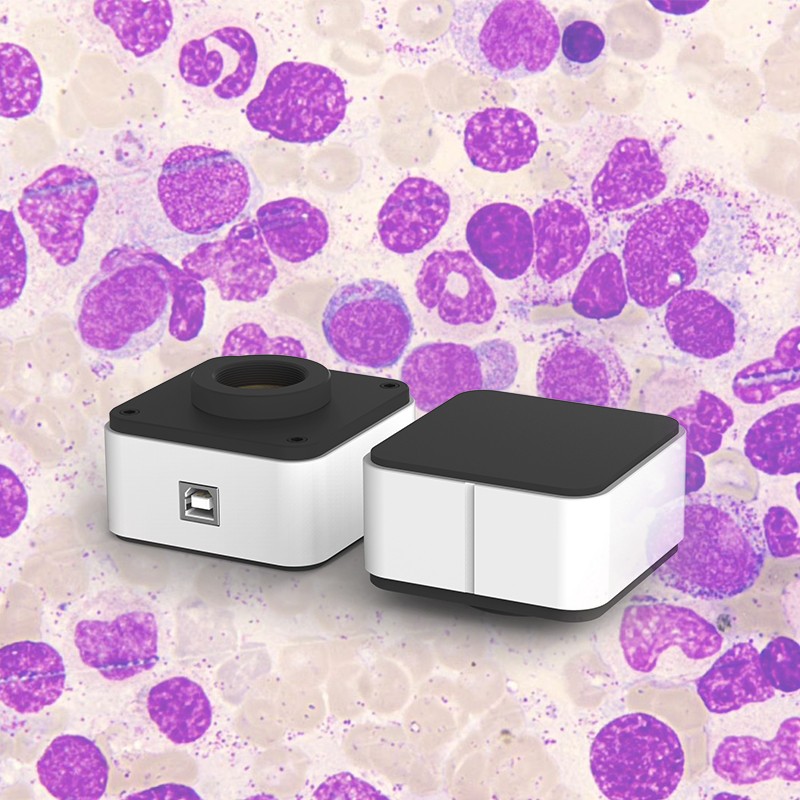

GC series industrial microcamera

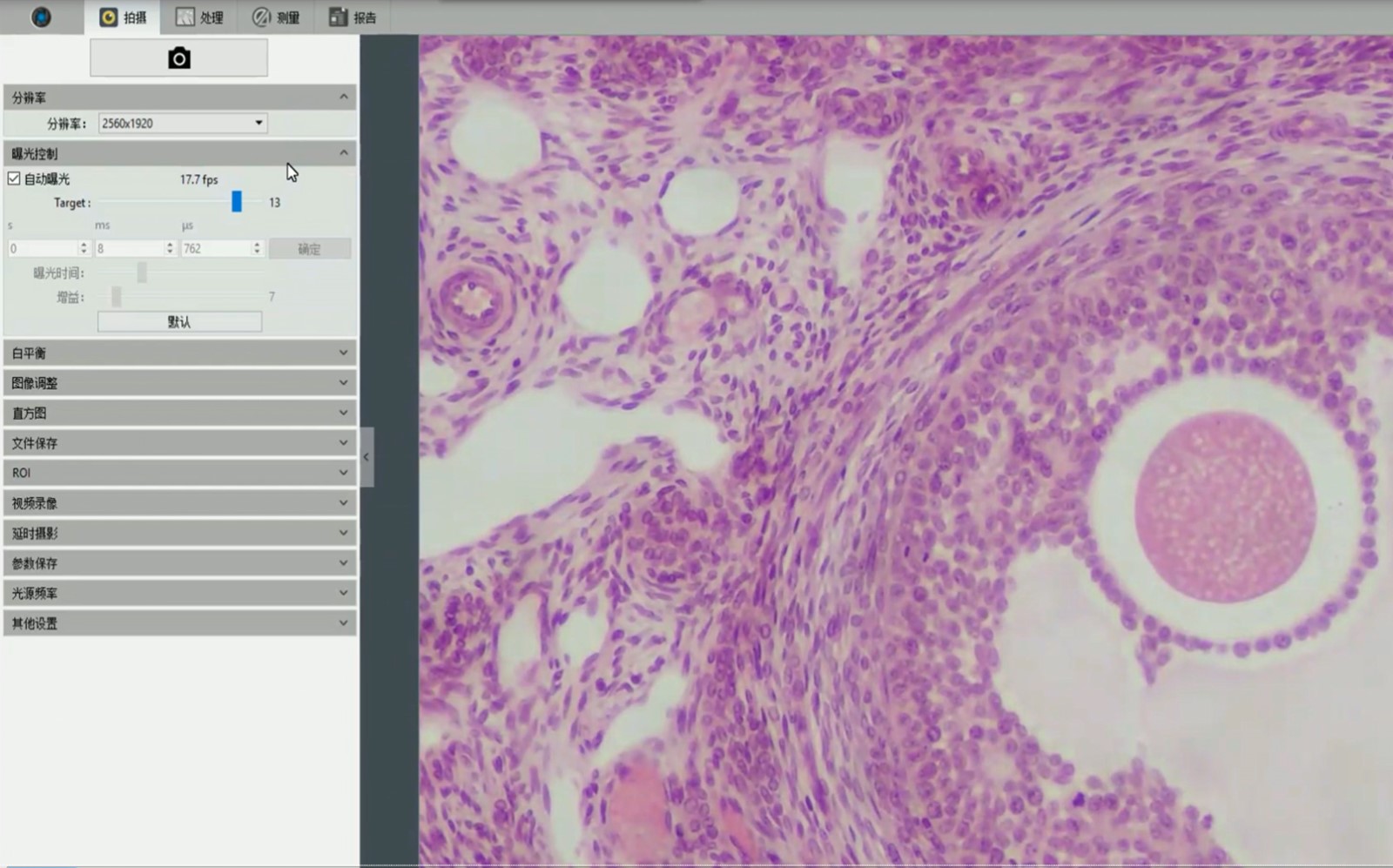

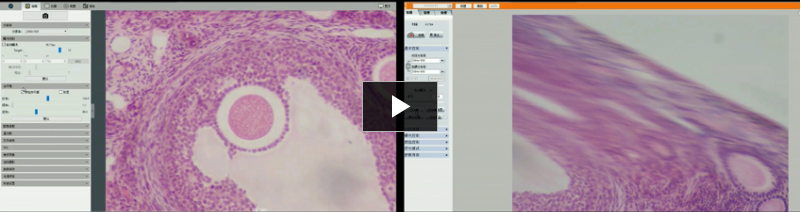

Graphics acceleration technology, USB2.0 frame rate greatly improved!
Built-in Dealun ISP image acceleration processing chip, greatly improve USB2.0 camera preview frame rate, the picture does not lag, more smooth operation!
Guaranteed quality
While innovative technology brings high speed experience, GT also ensures high quality image output, 2 million, 5 million, 12 million uncompressed resolution output, the collection of Associating perfect color reduction algorithm, bring ultra-high performance experience for simple economic microscopic imaging.
Minimalist operation mode, work more efficient!

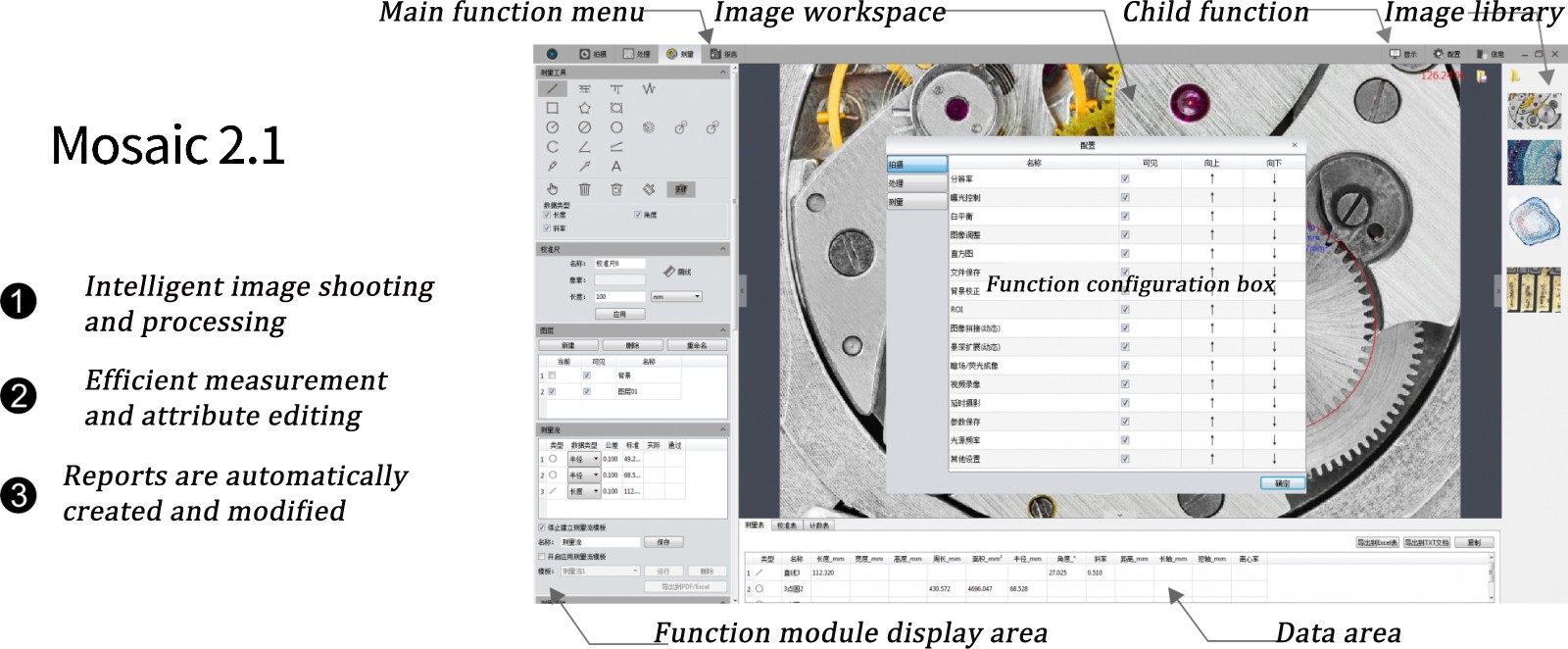

Associating with a new Mosaic 2.1 "shooting - processing - measurement - report" workflow software, simple interface, function definition is clearer, set associating with a variety of intelligent image processing algorithm, work more efficient!

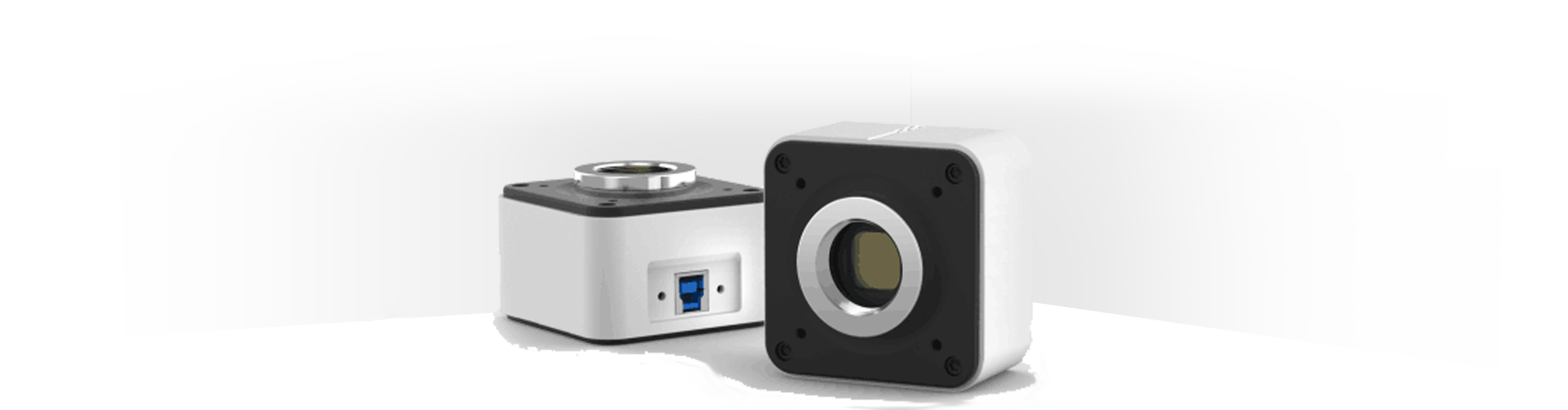

GC series industrial microcamera
Product model | GC200 | GC500 | GC1200 |
The chip type | Sony CMOS | Sony CMOS | Sony CMOS |
The chip size | 1/2.9 of an inch | 1/2.8 of an inch | 1/2.33 of an inch |
The resolution | 2 million 1920 x1080 (H) (V) | 5 million 2560(H)x1920(V) | 12 million 4000(H)x3000(V) |
Pixel size | 2.8μmx2.8μm | 2.0μmx2.0μm | 1.34μmx1.34μm |
The camera frame rate | 30 frames | 29frames | 15frames |
Color type | color | color | color |
The shutter mode | The roller shutter | The roller shutter | The roller shutter |
The exposure mode | Automatic/manual | Automatic/manual | Automatic/manual |
Image format | TIFF/JPG/PNG/DICOM | TIFF/JPG/PNG/DICOM | TIFF/JPG/PNG/DICOM |
The operating system | Windows 7/8/10(32-bit / 64-bit),Mac | Windows 7/8/10(32-bit / 64-bit),Mac | Windows 7/8/10(32-bit / 64-bit),Mac |
PCsoftware | Mosaic V2 | Mosaic V2 | Mosaic V2 |
SDKdevelopment support | C/C++, C#, Directshow | C/C++, C#, Directshow | C/C++, C#, Directshow,Twain |
Optical interface | C interface | C interface | C interface |
Data interface | USB2.0 | USB2.0 | USB2.0 |
The work environment | Temperature: 0-40℃, humidity: 10%-85% | Temperature: 0-40℃, humidity: 10%-85% | Temperature: 0-40℃, humidity: 10%-85% |
Size of the camera | 68x68x42.5mm | 68x68x42.5mm | 68x68x42.5mm |
Weight of the camera | 236g | 236g | 236g |
