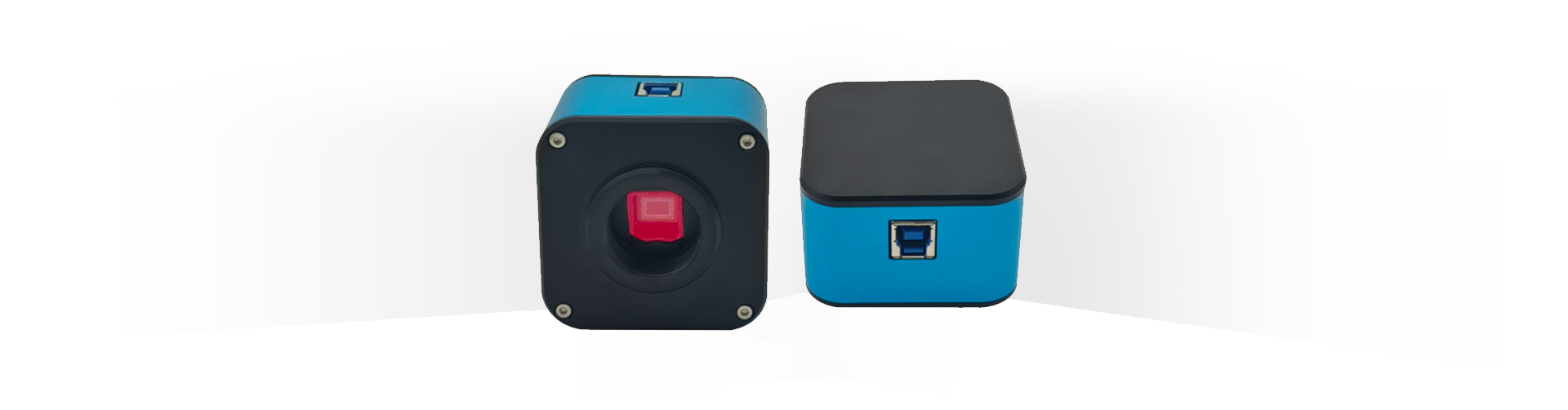

AFSCOPE U408 Camera
Camera matching device：
●Front end matching: C mouth microscope or C mouth lens.
Camera installation instructions：
●Connection of the U408 camera to the C-shaped lens.
●Connect the camera to the PC with the TYPE-B 3.0 line.
Camera shape size：
Camera specifications
Product model | U408 | Display frame rate | 3840*2160/30fps(MJPEG) |
Image sensor | CMOS color | 3072*1728/40fps(MJPEG） | |
Effective Pixels | 8 million pixels | 1920*1080/60fps(MJPEG); | |
Target surface size | 1/3〞 | 3840*2160/6.5fps(NV12) | |
Menu | Full digital UI design | 3072*1728/10fps(NV12) | |
Operation method | PC operation | 1920*1080/30fps(NV12) | |
Lens interface | C-type | shutter speed | 1/60s～1/100000s |
Output method | Type-B USB3.0 | working temperature | -20℃~70℃ |
white balance | Manual / Automatic | Digital amplification | support |
Exposure method | Manual / Automatic | Storage function | PC storage |
Scanning method | progressive scanning | PC operating system | Microsoft®Windows® 10 and above |
Output Format | MJPEG/NV12 | Basic PC requirements | CPU: Inter ®i5 8400 and above Memory: 8GB and above OpenGI：≥3.3OpenGI：≥3.3 |
