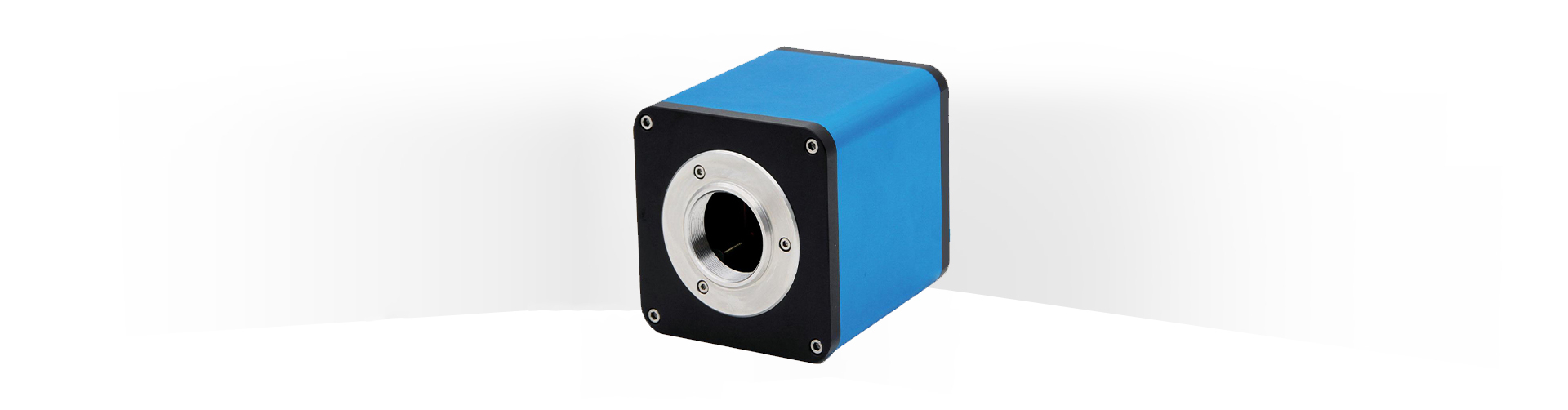

AFSCOPE C213 camera
Camera matching device：
●Front end matching: C-port microscope or C-port lens.
●Backend matching: With HDMI support 1080P@60Hz or 1080P@50Hz monitor.
Introduction to Camera Interface：
Camera installation instructions：
●Connection between C213 camera and C-type lens.
●Use an HDMI cable to connect the monitor to the camera.
●Connect the mouse.
●Use an adapter power supply to power the camera.

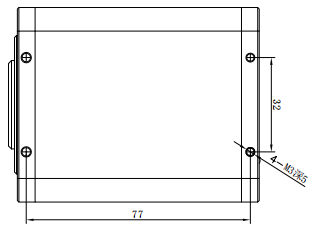

External dimensions of phase camera：
Camera specifications：
Product model | C213 |
Focusing mode | Automatic focusing |
Image sensor | CMOS color |
Effective pixels | 2 million pixels |
Target surface | 1/2〞 |
Pixel size | 3.75 |
Menu | Full digital UI design |
Operation method | Mouse operation |
Lens interface | C-type |
Power supply DC | DC12V |
Output method | HDMI |
white balance | Manual/Automatic |
Exposure method | Manual/Automatic |
Display frame rate | 1080P@60fps/1080P@50fps |
Scanning method | progressive scanning |
Electronic shutter speed | 1/50s(1/60s)～1/10000s |
working temperature | 0℃～50℃ |
Digital amplification | support |
Storage function | Support for USB storage |
Precautions for use：
●The device requires a DC12V power supply.
●Support foot pedal and controller operation.
*All accessories are subject to the actual product
