AFSCOPE C313 Camera
Camera matching device：
●Front end matching: C-port microscope or C-port lens.
●Backend matching: Supports HDMI 4K@60Hz The 4K@50Hz The 1080P@60Hz or 1080P@50Hz monitor.

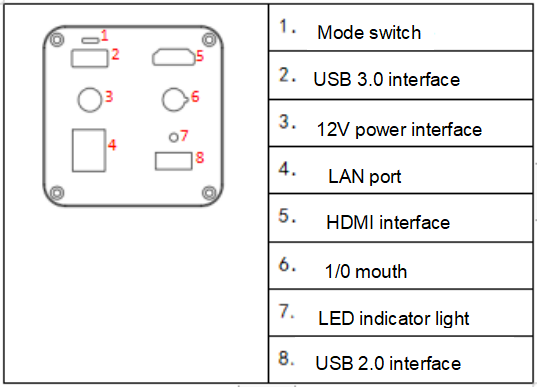

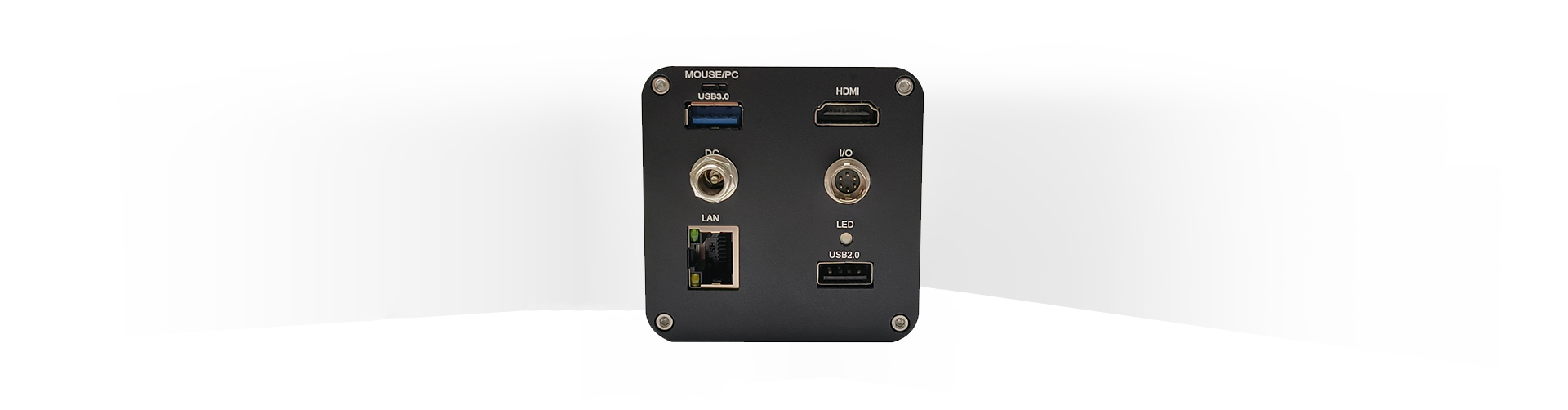

Introduction to Camera Interface：

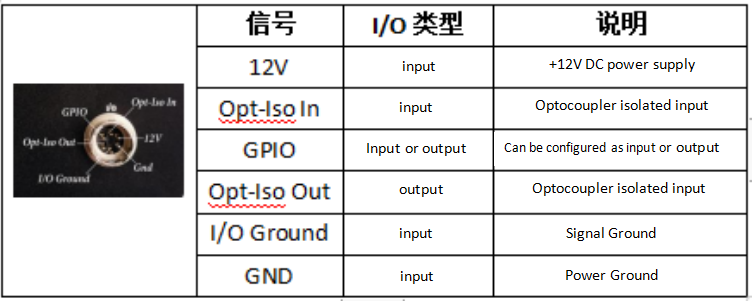

I/0 Pin Definition Table：
Camera installation instructions：
●Connection between C313 camera and C-type lens.
●Connect the monitor and camera using HDMI/USB/Ethernet cable.
●Connect the mouse.
●Use an adapter power supply to power the camera.

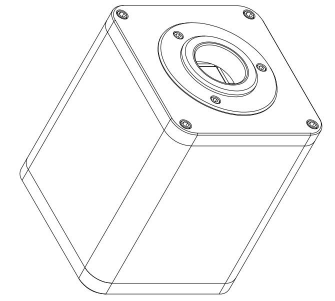

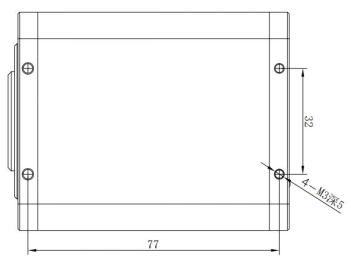

Camera dimensions：
Camera specifications:
Product model | C313 |
Focus on the way | Auto focus |
Imaging sensor | CMOS Color |
Effective pixel | 8 million pixels |
Target size | 1/1.8〞 |
Like a meta size | 2.0 |
Menu | Full digital UI design |
Operation method | Mouse operation/PC software |
Lens interface | Type C |
Source DC | DC12V |
Output method | HDMI/USB/LAN |
white balance | Manual / Automatic |
Exposure method | Manual / Automatic |
Display frame rate | HDMI:4K@60fps/1080p@60fps USB:4K@30fps/1080p@60fps LAN:4K@30fps/1080p@60fps |
Scanning method | Progressive scanning |
shutter speed | 1/30s～1/10000s |
working temperature | 0℃～50℃ |
Storage method | Support for U-disk storage / PC-side storage / internal storage |
Precautions for use：
●The device requires a DC12V power supply
*All accessories are subject to the actual product
