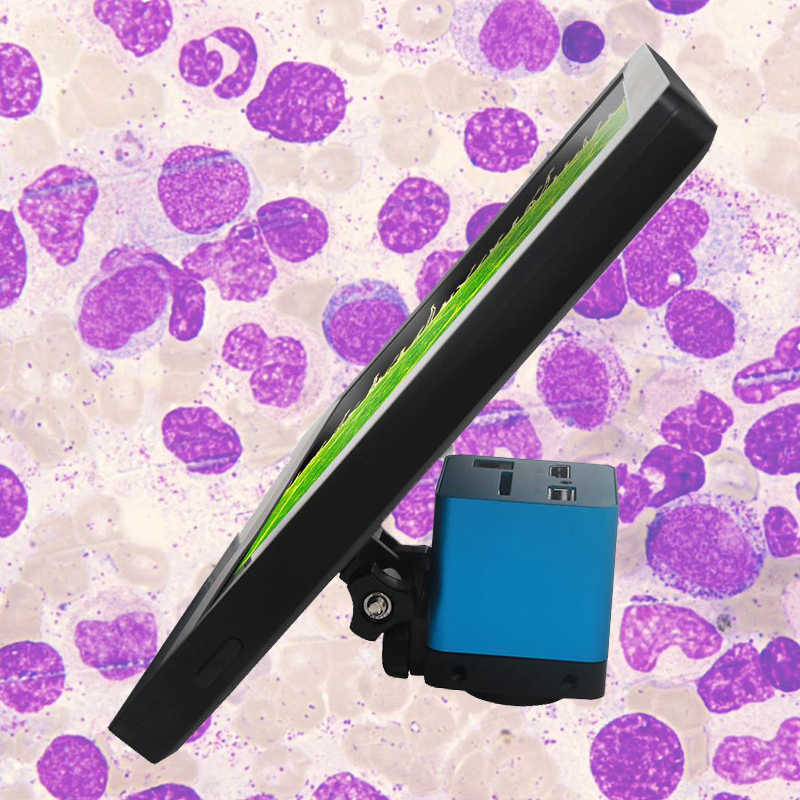

XPC236-HDMI Microscope camera
(HDMI+USB dual-Output Camera)
Basic FEATURES of THE HDMI terminal of the XPC236 series multi-output cameras
The XPC236-HDMI camera is a CMOS camera with multiple outputs (USB port of HDMI+SD card, X of XCAM stands for multiple ports). It USES ultra-high performance CMOS sensors.
The camera can be connected directly to the HDMI display, and can also be connected to the computer at the same time. Moreover, the image and video can be saved in the SD card for field analysis and subsequent research.
The most important feature of XPC236-HDMI camera is that the camera itself is an embedded ARM core, which can display all functions of the camera directly on the HDMI display in the form of control panel. Furthermore, users can directly control all parameters of the camera with the mouse of USB mouse interface.
In addition, there are various toolbar buttons at the bottom of the HDMI interface for users to operate.
Basic USB port function for XPC236 series multi-output cameras
Unplug the mouse and connect the USB port to the COMPUTER, then the XPC236-HDMI camera is another USB port camera, and users can directly control the hardware of the camera with random software such as ToupView or ToupLite.
Xpc236-hdmi camera can be used for tool field inspection, microscope observation and other photographing, measuring, recording and other functions.
L C interface camera, high sensitivity CMOS sensor;
L HDMI + USB output simultaneously;
Built-in mouse control software XCamView;
L Embedded image acquisition and video recording function to SD card;
L Embedded mouse control panel;
Built-in zoom, Mirror, Compare, freeze, Cross Wire, browsing and other mouse control toolbar;
L Embedded image and video browsing, display and playing functions;
L Super fine color engine to ensure accurate color reproduction;
L provides advanced video and image processing application software ToupView and camera;
L Provides Windows/Linux/OSX multi-platform standard UVC SDK;
L NUMERICAL control shell design and processing;

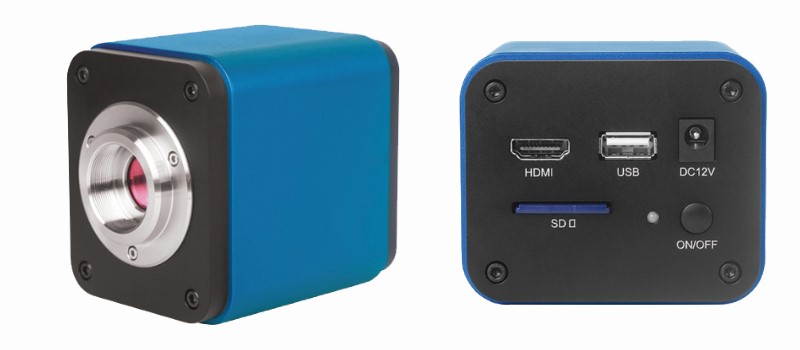

XPC236-HDMI camera interface and its back interface

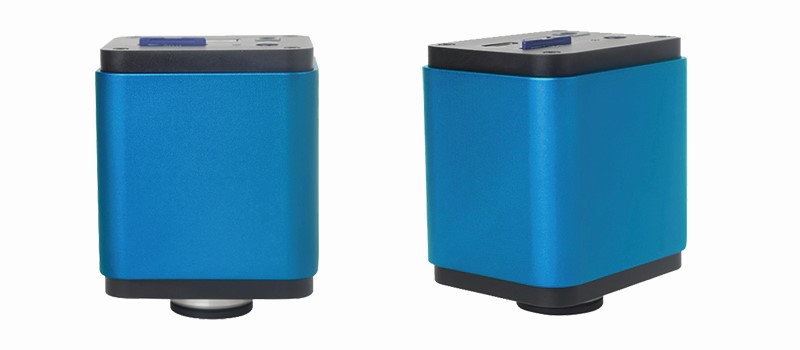

XPC236-HDMI camera shapes with different viewing angles
XPC236-HDMI Microscope camera
Product model | XPC236-HDMI |
Model and dimension of sensor
| 1080P/Sony IMX236 1/2.8”(5.5x3.4) |
pixel(μm) | 2.8x2.8 |
G light sensitive dark current | 510 mv with 1/30s 0.15 mv with 1/30s |
FPS/resolution | 60@1920X1080P(HDMI) |
Sample mean | 1x1 |
Exposure time | 0.1ms~999ms |
C: color;
M: Monochrome or black and white;
Interface and key functions | USB | USB is controlled by connecting a COMPUTER /USB mouse via a USB cable |
HDMI | HDMI output | |
DC12V | 12V power supply | |
SD | SD card slot | |
ON/OFF | Power on/off | |
HDMI outputs other parameters | ||
UI operation | Through USB interface mouse to achieve | |
Image capture | Save the SD card in JPEG format at 1080P resolution | |
Video footage | Stored in SD card with 1080P resolution and 30FPS speed | |
Camera control panel function | Includes exposure, gain, white balance, color adjustment, sharpness and noise reduction control | |
Ttoolbar | Includes functions such as zoom, mirror, compare, freeze, cross wire, browse, etc | |
Other parameters of USB interface | ||
White balance | Automatic white balance | |
Color technology | Ultra-fine Color Engine (USB) | |
Capture/control API | Standard UVC (Windows/Linux/Mac(USB)) | |
Logging mechanism | Still images or video (USB) | |
Software environment (USB2.0 interface to computer) | ||
The operating system | Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit) | |
PC basic requirements | CPU:Intel Core2 2.8GHz Or higher | |
Memory: 4GB or more | ||
USB interface: USB2.0 high-speed interface | ||
Monitor: 19 "or larger | ||
CD-ROM | ||
Camera working environment | ||
Operating temperature (Celsius) | -10~ 50 | |
Storage temperature (Celsius) | -20~ 60 | |
Working humidity | 30~80%RH | |
Save the humidity | 10~60%RH | |
The power supply | DC 12V/2A adapter | |
Size of the camera | ||
Length x width x height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) | |
Shipping weight | 0.47 kg (1.0lbs) |
