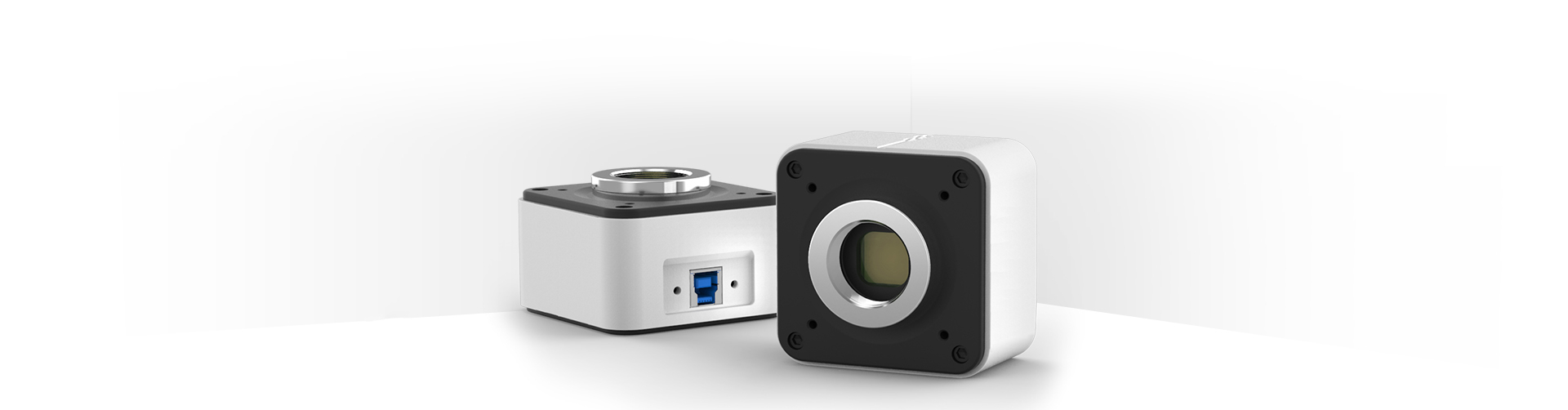

MC500Pro fluorescent imaging camera

MC500Pro fluorescent imaging camera

The core function

"Real-time" image Mosaic

MC500Pro series industrial cameras equipped with The new Talun imaging computing software Mosaic 2.0, to provide you with the "real-time image Mosaic" function, mobile platform in a few seconds can be simultaneously generated Mosaic large images, light, smooth, worry!


"Real-time" depth of field fusion

MC500Pro series industrial cameras also provide real-time depth of field fusion function. By turning the focus ring to shoot different depth of field points, clear and large depth of field images can be generated. Fast, accurate and efficient!


Efficient image acquisition - editing - measurement - report output

Starting from the user operation experience, it provides a complete series of workflow of image acquisition, editing, measurement and report output, optimizes the operation process, greatly saves your operation time and improves your work efficiency!


500Pro bright field, fluorescence, polarizing imaging, can be handy

500Pro perfectly inherits the Core color reduction technology of Dairun ISP, which can effectively improve the color deviation of the sensor to the spectral response and accurately restore the true color under the microscopic field of vision.

Excellent imaging performance, whether bright field, fluorescence, or polarized light imaging, can be handy


SONY specializes in CMOS sensors

SONY 20 megapixel CMOS sensor IMX183CQJ-J, target size 1:1", pixel size 2.4 m, image resolution up to 5496(H)x3672(V).

Images taken at low magnification remain sharp even when magnified several times.



Advanced global shutter technology

With global shutter technology, all pixels are exposed at the same time, not only accurate tracking and capture of dynamic samples, but also fast moving sample shooting, you can obtain a clear image without distortion and distortion!

USB 3.0 stable high-speed transmission

Simple and convenient while ensuring a stable high transmission rate, allowing fast focus at high resolution.

At full resolution, rapid imaging can be achieved at a rate of 40 frames per second.




MC500Pro fluorescent imaging camera

Product model

500Pro(Suitable for fluorescence microscope)

Chip

IMX264LQR-C

Chip type

CMOS

Chip size

2/3"

Color type

color

Pixel size

3.45x3.45(μm)

Resolution

2448(H)x2048(V)

Camera frame rate

35fps(2448x2048)
35fps(1224x1024 2x2bin)
88fps(1224x1024)

Shutter mode

Roller shutter

Exposure time

0.13ms-15s

Automatically set

Exposure, levels, white balance

manually

Exposure, gain, noise reduction, gamma ray, flat field correction

Color temperature

2000-15000K

Pc software

Capture V 2.0

Image format

JPG / PNG / TIFF

Operating system

Support for Windows, Linux/Mac development

PC requirements

CPU: Intel I5 with 4 cores or above, RAM: 8G or above, OS: 64-bit Win7/8/10

Multiple cameras

Support for running four cameras simultaneously on the SDK

Data interface

USB3.0

Optical interface

Standard C interface

Size of the camera

68x68x46mm

Weight of the camera

330g
