Based on the photoelectric industry, based on the combination of optical, mechanical and electronic three core technologies

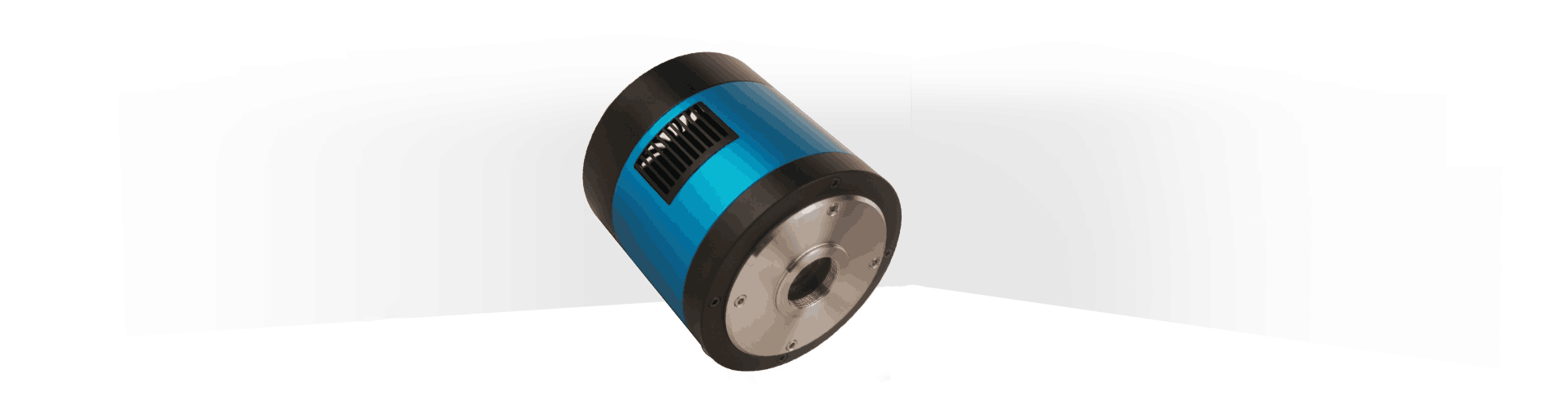

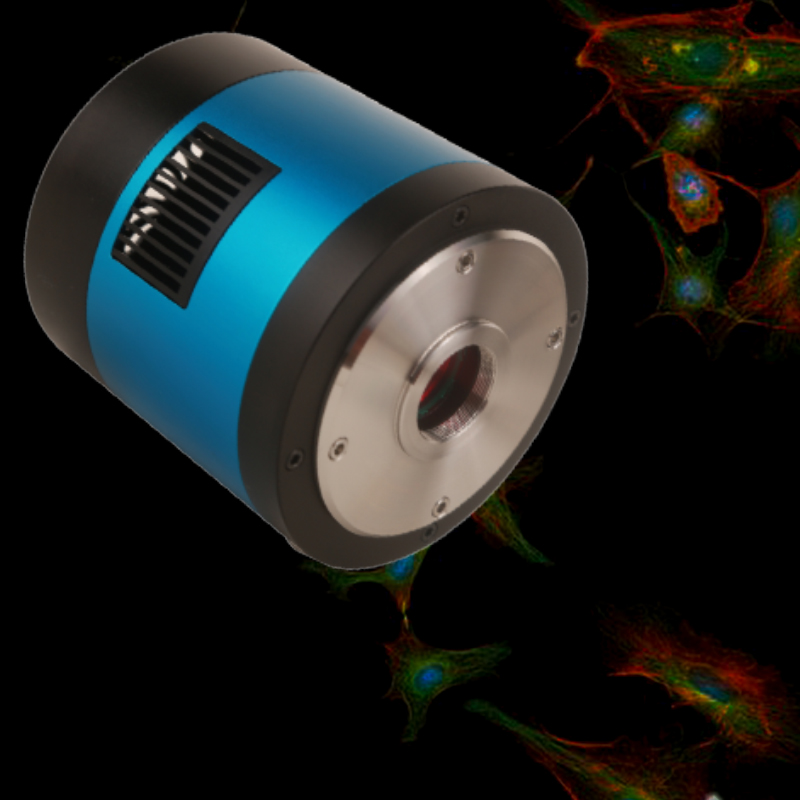

H-694c scientific - grade chemical fluorescence imager

H-694c scientific - grade chemical fluorescence imager

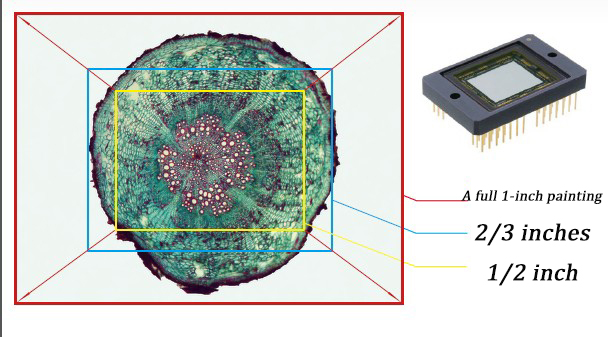

One inch full frame

Full canvas - challenges the widest range of vision

The first full-frame ExviewHAD CCD image sensor ICX694 with 6.1 megapixels is developed to achieve the best image quality for both still images and films.

The efficiency of image sensors has also been significantly improved, resulting in higher sensitivity, lower noise and higher dynamic range of image quality, together with the field effect of full frame, which fully meets the professional requirements of microscope observers.


Very low noise

Color and detail represent only a fraction of the huge potential of the ICX694 image sensor.

With the H-694C, you can capture vivid, low-noise images at extremely high gain, removing many of the fluorescent imaging barriers without sacrificing excellent natural tone transitions.

Some faint lights require the use of the ultimate resolution H-694C to produce stunning low noise image files with A4 format printing resolution.



Fluorescence mode 6 high speed images per second

With its high sensitivity and powerful software processing capabilities, the H-694C can preview weak fluorescent images at high speed with 6 images per second, easily finding and focusing samples.

Pleasing saturation, faithful color


The H-694C controls tone precisely, so that all colors are faithfully reproduced -- red is pleasantly saturated without excessive redness, and blue, once thought hard to reproduce, can now be considered a standard hue.



H-694c scientific - grade chemical fluorescence imager

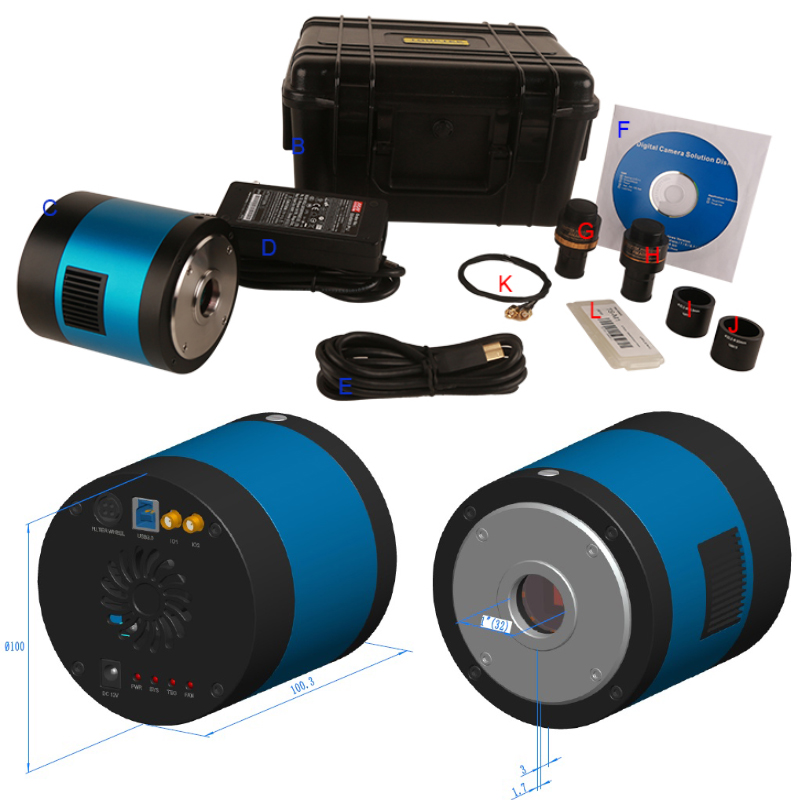

 Product model

H-694C

H-694CICE

Image sensor model

Sony ICX694AQ

Sony ICX694AQ

Color/Black and white

color

color

CCD/CMOS size

1 inches

1 inches

Pixel size(μm)

4.54 microns x4.54 microns

4.54 microns x4.54 microns

Effective pixels

6 million

6 million

Maximum resolution (H×V)

4080Hx3072V

4080Hx3072V

Scanning mode

Progressive scan

Progressive scan

The shutter mode

Electronic shutter

Electronic shutter

Frame frequency

3.3 Frames per second (2728x2192)

3.3 Frames per second (2728x2192)

6.2 frames per second (1620x1072 Cropping)

6.2 frames per second (1620x1072 Cropping)

8.8 frames per second (1080x720)

8.8 frames per second (1080x720)

Analog-to-digital conversion

12bit

12bit

Exposure control

Automatic/manual

Automatic/manual

Exposure range (in seconds)

1 millisecond -160 minutes

1 millisecond -160 minutes

White balance control

Automatic/manual

Automatic/manual

Dynamic range

69.8dB

69.8dB

Working temperature

0-60℃

0-60℃

refrigeration

Semiconductor refrigeration

Semiconductor refrigeration

Working humidity

45%-85%

45%-85%

Storage temperature

-20-70℃

-20-70℃

Refrigeration temperature

Peltier Class L(0℃)

Operating system support

Windows / Linux / Mac

Windows / Linux / Mac

Optical interface

C interface

C interface

Data interface

USB2.0/480Mb/s

USB2.0/480Mb/s
