Microscopic counting method - Insoluble particle analyzer

Products shall be:

Detection of insoluble particles of large infusion, small injection and freeze-dried powder;

Special preparation: protein solution, emulsion, liposome, suspension, high viscosity preparation, color preparation;

Detection of insoluble particles such as ophthalmic injections and vaccines;

Pharmaceutical packaging materials and other non-compatible particle detection.

Fully meet and higher than the requirements of 2015 Edition of The Chinese Pharmacopoeia, built-in anesthesia equipment, infusion equipment testing standards, can be directly loaded with a variety of injections, sterile powder, and medical equipment particle pollution filtration rate test;

What sex says:

1. System Introduction:

Microcounting insoluble particle detector is the first choice for detecting insoluble particles in special dosage forms, such as protein solution, liposomes, emulsions, eye drops, suspensions, pharmaceutical packaging materials, etc., which contain a large number of bubbles, silicone oil or emulsion drops.

These special formulations use the optically defined method of detecting insoluble particles - the photoresist method - to produce false results, resulting in errors that affect safety.

The microscopic counting method can distinguish impurities, bubbles, silicone oil, glass chips and other foreign matter impurities, so as to get accurate results.

Composition: Microscopic counting insoluble particle analyzer can observe the particle morphology, and obtain particle size distribution, quantity, size, average aspect ratio and aspect ratio distribution, etc., which adds a new particle size for scientific research and production

Testing means;

The system consists of optical microscope, digital CCD camera, image processing and analysis software, computer, printer, etc.

It is a combination of traditional microscopic measurement method and modern image processing technology.

Software: The test software has the functions of operator management system, image storage, particle tracking, report output, etc.

Comply with 21CFR Part11 specification.

 Features: intuitive, visual, accurate, wide testing range, automatic identification, automatic statistics, automatic calibration and other features;

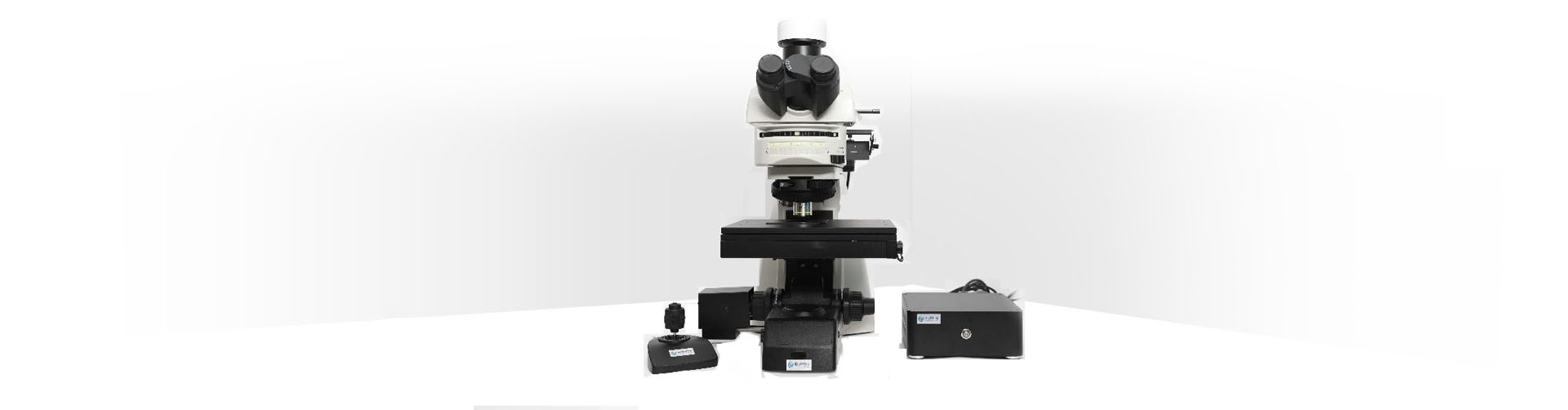

2. Introduction to the microscope:

Yin Huang technology for your dedicated cost-effective laboratory microscope.

It can be easily observed in light field, dark field, phase contrast, fluorescence, polarized light, etc.

Also can connect camera, digital camera, and computer machine work.

You can choose domestic microscope or Olympus microscope according to your needs.

1) objective

Independently calibrated optical system, the objective lens has higher numerical aperture, the image is flatter and the clear range reaches the edge of the field of view.

5X, 10X, 50X and so on can be selected according to the requirements, after anti-mildew treatment.

2) the eyepiece

High eye-point, adjustable diopter.

The field of view of 10X eyepiece is available in 20mm and 22mm configurations.

After anti - mildew treatment.
