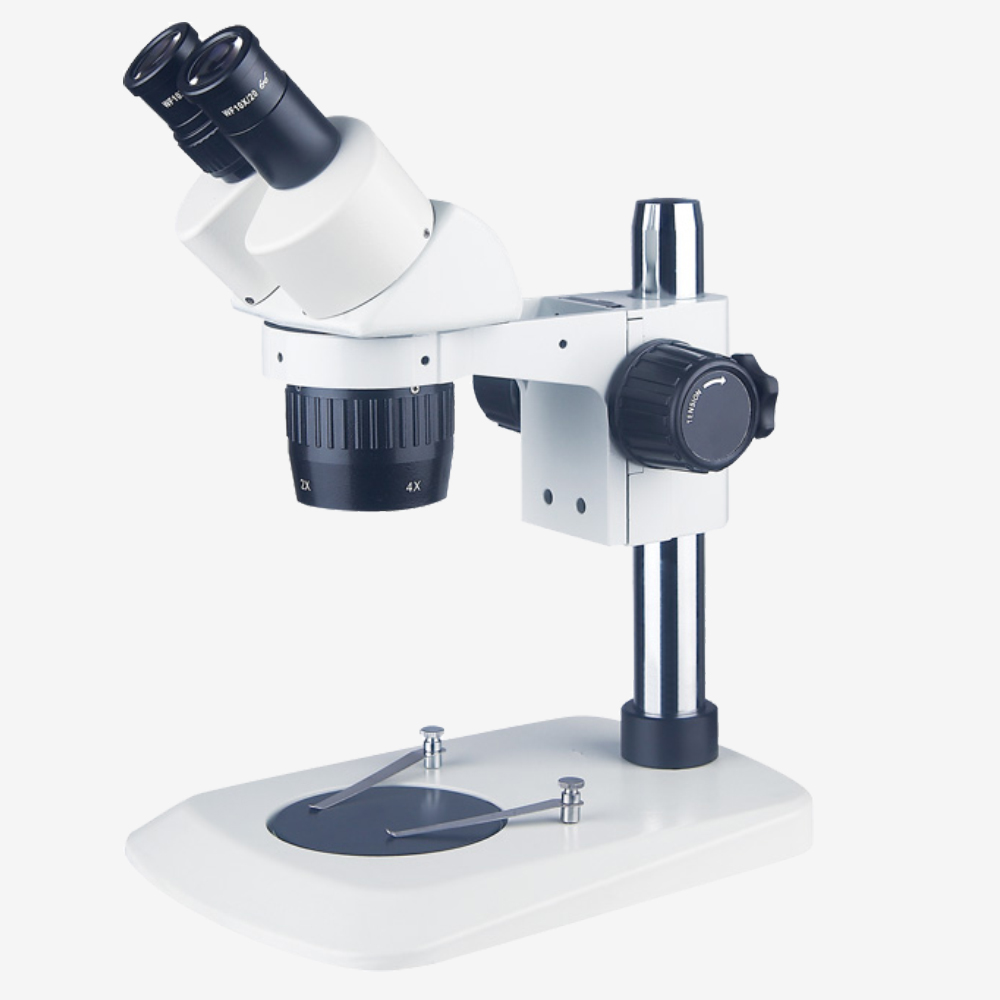

PXS-VIStationary phase ploidy visual microscope

PXS-VIStationary phase ploidy visual microscope

Introduced:

It has the characteristics of wide range of use, long working distance, clear imaging quality, wide field of vision, high lighting brightness, novel shift mechanism and easy operation and use.

Dust and smoke protective glass is specially designed in front of the objective lens, which is beautiful and graceful due to streamlined design. It can not only be used for teaching demonstration, biological anatomy, but also for assembly and inspection of precision parts in the electronic industry.

Instrument features:

Large field of view up to 22mm, imaging clear, strong three-dimensional sense

The horizontal handwheel rotation with the best operation function is doubled, and the objective lens 1/2x, 1/3x, 1/4x and 2/4x are optional

The 45-degree tilt viewing head can be rotated 360 degrees for more comfortable operation

The eyepiece tube can be adjusted for ±5 visual degrees and the pupil distance is adjusted for 55-75

95mm glass scrub working plate and black and white two panels

The working range of handwheel focusing is 43mm and vertical rod adjusting range is 80mm

Additional magnification objective lens 0.5x (working distance up to 146mm) and 2.0x are available

PXS-VIStationary phase ploidy visual microscope

directory	objective1X		objective2X		objective3X		objective4X
	Working distance100mm
	magnification	field	magnification	field	magnification	field	magnification	field
10X/20mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
20X/10mm	20X	10.0mm	40X	5.0mm	60X	3.3mm	80X	2.5mm
magnification	Standard magnification 20X/40X, optional other magnification eyepiece and objective lens, magnification magnification can be extended 10X.. The 80X constant is doubled
The eyepiece	Standard configuration: 10X/20mm, large field of vision, wide Angle, high eye point, for the convenience of the observer wearing glasses
Optional eyepiece	10X/20mm，15X/15mm，20X/10mm
Observe the head	45° tilt, 360° rotation, pupil distance adjustment range 54-76mm; Unilateral visual adjustment ±5
	Hinged binocular
objective	Gear shift multiple objective combination 2X/4X, 1X/2X, 1X/3X
Focusing bracket	A1 Focusing bracket, handwheel adjustable for tightness, lifting range 50mm
The base	B1 column type small flat base, optional other base, see the base component diagram
lighting	All kinds of fluorescent and LED ring lamps are optional. See the external light source component diagram for details
