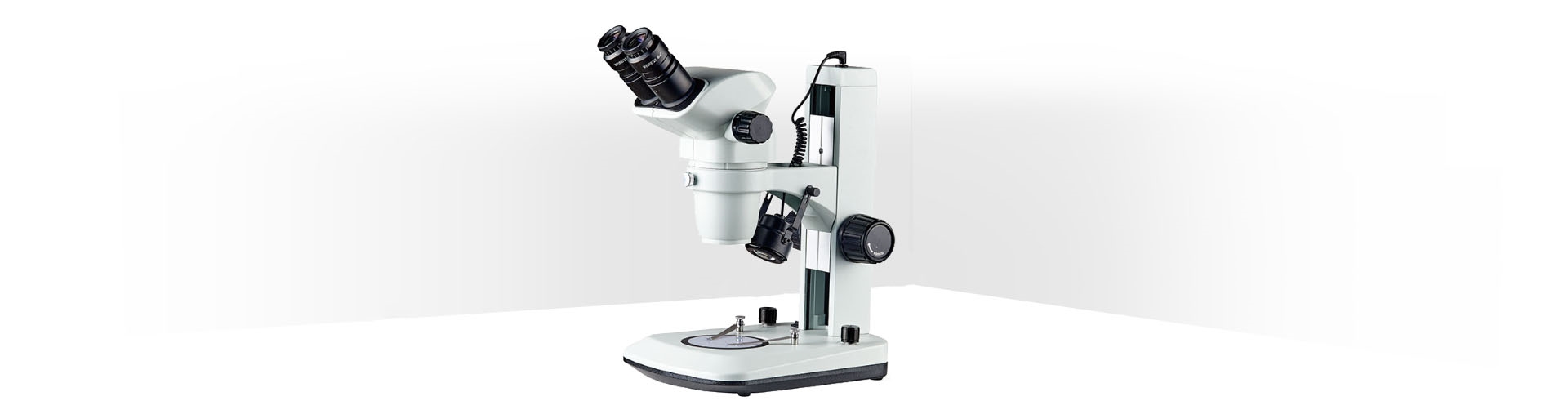

SM-2Aseries continuous ploidy visual microscope
The SM-2 series continuous varioid-type visual microscope provides excellent optical system and durable and reliable operating mechanism.
The new design shows the best resolution and true color image, meeting the high precision requirements of modern biomedicine, scientific research, modern electronic industry online detection and other science and technology industry fields.
Introduction to the instrument:
1. Solid state microscope or anatomic microscope
2. Magnification continuously adjustable orthostatic 3D image
3. High eye-point wide-angle eyepiece imaging is clear and broad
4. Pupil distance linkage and binocular diopter can be adjusted
5. Long working distance and large depth of field torque adjustment
6. High brightness and longevity LED can be dimmed and reflected

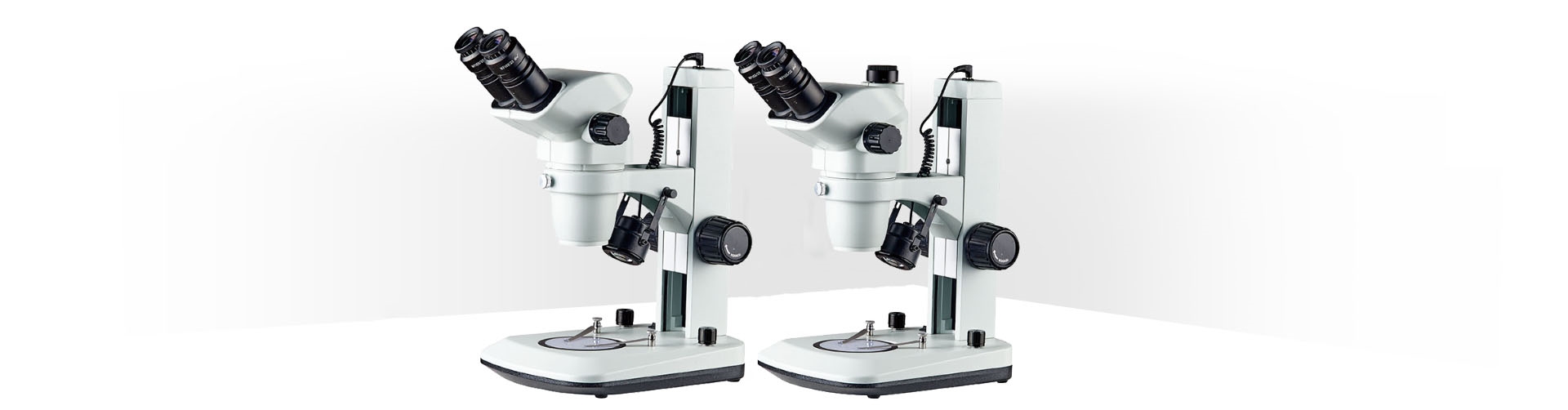

SM-2Aseries continuous ploidy visual microscope
Technical parameter list
The eyepiece | The standard configuration | The auxiliary lens0.5X（choose） | The auxiliary lens2X（choose） | ||||
Working distance105mm | Working distance177mm | Working distance26mm | |||||
magnification | field | magnification | field | magnification | field | ||
10X/22mm | 6.7X | 32.8 | 3.4X | 65.7 | 13.4X | 16.4 | |
45.0X | 4.9 | 22.5X | 9.8 | 90.0X | 2.4 | ||
20X/12mm | 13.4X | 17.9 | 6.7X | 38.5 | 26.8X | 9.0 | |
90.0X | 2.7 | 45.0X | 5.3 | 180.0X | 1.3 | ||
magnification | The standard configuration：6.7X-45X，Optional eyepiece and auxiliary objective lens, magnification can be extended: 3.35X-270x | ||||||
The eyepiece | The standard configuration：10X/22mm，Large field of vision, wide Angle, high eye point, to provide convenience for the observer wearing glasses | ||||||
Optional eyepiece | 10X/22mm，15X/16mm，20X/12mm，25X/9mm，30X/8mm | ||||||
Observe the head | SM-2A | 45° tilt, 360° rotation, pupil distance adjustment range 54-75mm; Bilateral visual adjustment ±5 | |||||
SM-2AT | Hinged tri-mesh, spectrophotometric ratio of 50%/50% | ||||||
objective | The standard configuration：0.67x-4.5x continuous magnification objective, magnification ratio 6.7:1, to ensure the image plane focal quality | ||||||
The auxiliary lens | 0.5X，2X | ||||||
Focusing bracket | Adjustable tension and lifting range of hand wheel of vertical arm focusing bracket 106mm | ||||||
The base | B9L vertical arm LED base, optional other base, see the base component diagram | ||||||
lighting | 5V3W upper and lower single LED lighting | ||||||
The ternary interface | With three - eye rod and CTV, it can be connected to ordinary camera, digital camera, industrial camera CCD | ||||||
