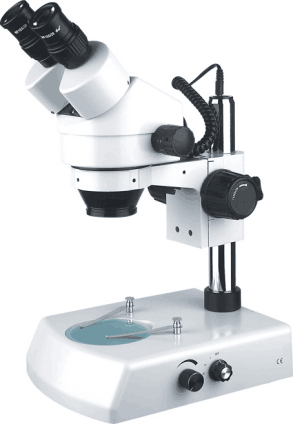

SZM45-B2 continuous ploidy visual microscope
Applicable Scope:
It is widely used in electronic industry, hardware, precision engineering, plastic industry, medical treatment, biomedicine, public security system, etc
Introduction to the instrument:
The observation head of SZM45-B1 has a 45° or 60° tilt tube and a 360° rotating binocular head.
Eyepiece tube can be used according to need to adjust the distance and diopter, is made of super high eyespots wide-angle eyepiece, SWH10X (23 mm) Φ pd regulating scope 54-75 - mm, double eyepiece barrel visibility are adjustable, the adjusting range of plus or minus 5 d.
The high focus handwheel is easy to use when the viewing head is installed on other devices.
Focusing range of 100 mm (50 mm) when round pillar, central workbench Φ diameter of 95 mm.
The three-way observation head on the main rod can be connected with a photographic device and a video recording device, which can shoot the observation sample images and output them to the TV or computer in the form of video.
Enlarge scope:
7 minus 45X multiplied continuously.
Working distance: 30mm-165mm, super long working distance, providing users with more working space.
Field of view source:
LED adjustable ring light source, or with fluorescent light transmission lighting (8W).
Focusing mechanism: Adjustable focusing handwheel with lifting range of 49mm.
Applicable Scope:
It is widely used in electronic industry, hardware, precision engineering, plastic industry, biology, public security system, etc.
After-sales service:
The warranty is free for one year.
7-45X continuous magnification microscope with generous appearance and clear imaging.
Standard configuration:
1. Lens barrel: 45° inclined, 360° rotating binocular observation head;
Pupil distance adjustment range 54-75mm;
The visual acuity of both eyepieces can be adjusted to ±5 diopters.
2. Eyepiece: Use wide-angle eyepiece with high eye point to provide convenience for the observer wearing glasses.
3. Magnification range: 7-45x continuously multiplied
4. Working distance: 30mm-165mm, extra long working distance, providing users with more working space
5. Field of view light source: LED adjustable ring light source (attached)
6. Focusing mechanism: Adjustable focusing handwheel with lifting range of 49mm.
SZM45-B2 continuous ploidy visual microscope
0.7x ~ 4.5x continuously variable lens body, working distance 110mm
Using ultra wide Angle, high eyespots eyepiece, SWH10X (Φ 23 mm)
· Binocular head eyepiece barrel tilts 45°/60°, host head rotates 360°
· Binocular visual adjustment range ±6 diopters
· Adjustment range of pupil distance is 52mm~76mm
Focusing range, 100 mm (50 mm) when round pillar, central workbench Φ diameter of 95 mm
Stents and host with size of 76 mm Φ
· The size from the center of the column to the center of the bracket is 140mm
Circular column size for Φ 25 mm
· Light source: Transmission lighting with fluorescent lamp (8W)
· Various accessories, upper halogen lamp and lower fluorescent lamp transmission light source base and universal support are available
