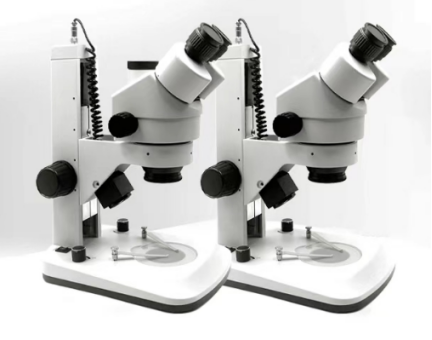

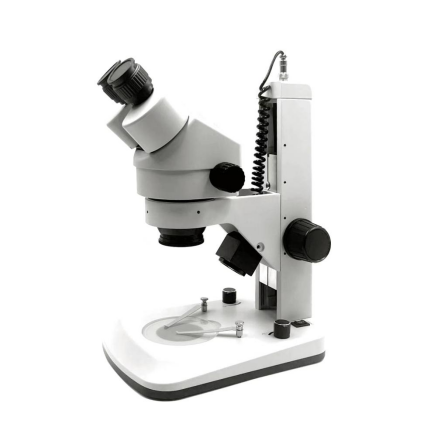

XTL-200 stereoscopic microscope


I. Instrument Introduction

XTL-200 stereo microscope, providing high-quality optical system and durable and reliable operating mechanism. The new design shows the best resolution and real color image, to meet the requirements of modern bio-medicine, scientific research, modern electronic industry online detection and other scientific and industrial fields of high precision.

II. Instrument Details

It is an important tool for scientific research and experimentation, and is widely used in biology, medicine, materials science and other fields. With the development of science and technology, its performance and application fields will continue to expand.

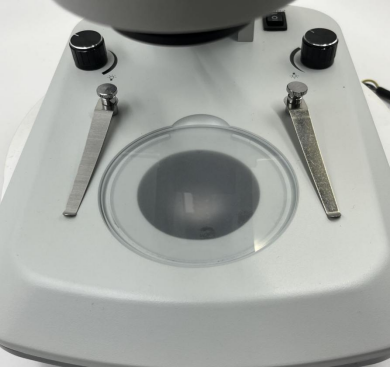

1. Base, stage and microscope is integrated in one piece, and is equipped with sample holder and a black and white plate/glass plate.

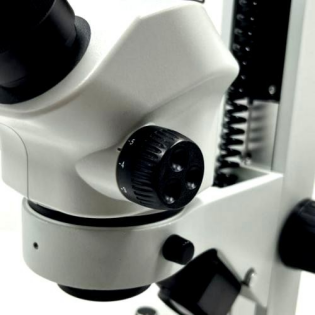

2. The six magnification is continuously adjustable to meet different observation needs. Personalized observation is realized by adjusting the magnification, and the presentation mode of the 3 d image is intuitive and realistic.


3. High eye point wide-angle eyepiece, clear and broad imaging; interpupillary distance linkage and binocular diopter are adjustable.

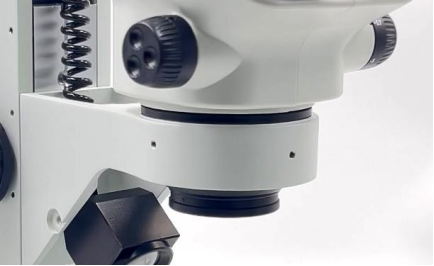

4. Long working distance and large depth of field, apochromatic objective lens.


5.Bright longevity LED and halogen lamp can be adjusted freely, the upper and lower light sources are equipped with a separate adjustment knob, making the operation more precise.

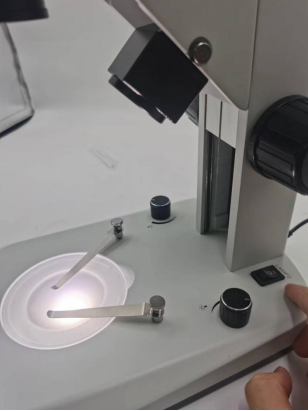

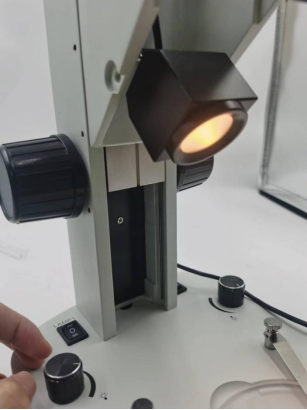

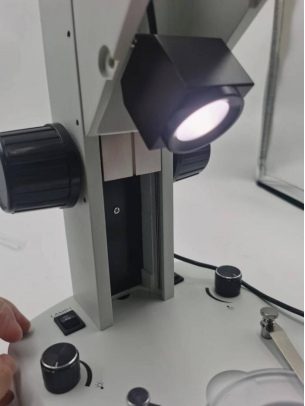

  Upper and Lower Light Source

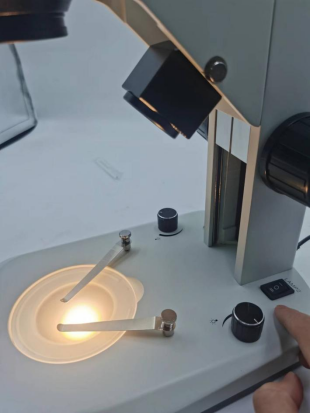

Double Light Type: LED and halogen lamp

image.png   image.png

image.png   image.png

l7-50x continuous zoom stereo microscope observation tube

lviewing head:Inclination of eyepiece is adjustable between 0°and 45°, 360 °rotate.

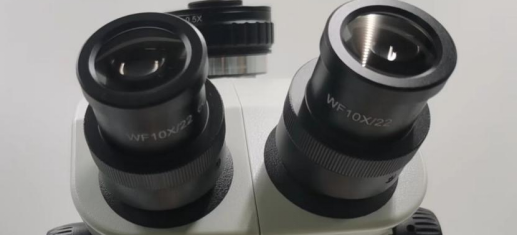

lEyepiece:WF (wild field)10X22mm

lApochromatic objective lens.

lObjective zoom: objective 0.7X---5X.

lZoom ratio: 7:1

lTotal amplification rate:the standard configuration is 7X-50X,(7X/ 10X/20X/30X/40X/50X)

lWorking distance:  100mm

lPupillary distance: 55mm-75mm

lFocusing bracket:Focus arm 76mm , Column aperture 32mm

lWorking platform:  Black/White plate and Glass plate.

lStand:BL3-A base, vertical arm bracket, upper and lower light source 3W LED with adjustable brightness (halogen lamp and LED lamp lighting system without replacing any accessories).

lThe device has episcopic and diascopic illumination integrated into the body of the microscope.

lOptional: the device is upgradable for fluorescence observation.
