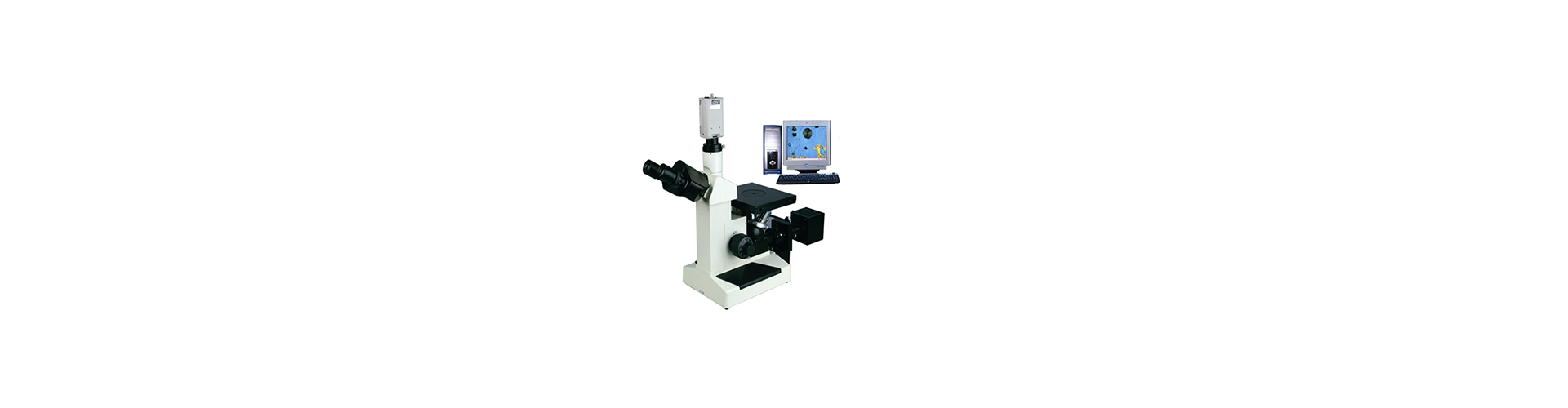

4XCE Metallographic microscope

I. Application of the instrument:

The 4XC series metallographic microscope is mainly used to identify and analyze the internal structure of metal, which is an important tool for the study of metallography in metal physics.

The selected photographic apparatus can take the full-multiple photographs needed for the metallographic map, and is applicable to factories and mines, universities and scientific research departments.

Ii. Instrument Performance Characteristics:

▲ Equipped with a large visual field eyepiece and long distance achromatic objective lens (without cover glass), the field of view is large and clear.

▲ Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m.

▲ 6V20W halogen lamp, adjustable brightness.

▲ When equipped with rotating shaft type eyepiece, it can freely switch between normal observation and polarized observation, and can carry out 100% transparent photography.

Note: Polarizing devices shall be selected for polarizing light and observation:

Iii. Functions and Features

1. Traditional models with stable quality and clear imaging.

2. Planetary coaxial coarse and micro focusing device is adopted for comfortable and stable focusing.

3. Adopt flat field objective lens and eyepiece, with flat field of view and high definition.
