53X Normal metallographic microscope
53X normal metallographic microscope is suitable for microscopic observation of opaque objects.
Cora lighting system, equipped with excellent long working distance achromatic field objective lens and large field of vision objective lens, can provide excellent optical performance.
The main body of the product is designed with "T" type anti-vibration structure, which is suitable for microscope observation of large samples.
The wide loading platform can move the sample slowly or quickly.
The products are beautiful in shape and easy to operate. They are ideal equipment for the research of metalology, precision engineering and electronics.
![B%X[`W)6512YEPIX2M]AX)C.jpg](/uploadfile/20201014/1602655908102516.jpg)

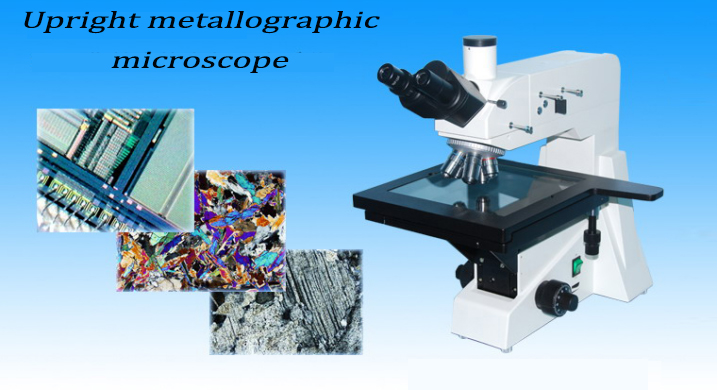

53X Normal metallographic microscope
Performance characteristics of
▲ Equipped with a large visual field eyepiece and long distance achromatic objective lens (without cover glass), the field of view is large and clear.
▲ Equipped with a large range of moving platform, can move fast and slow.
▲ Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m.
▲ 6V 20W halogen lamp, adjustable brightness.
▲ Three eyepiece tube, can freely switch between normal observation and polarized observation, can carry out 100% transparent photography.
Standard configuration
model | 53X |
The eyepiece | Large WF10X (Φ 18 mm) |
objective | Long anomaly field achromatic objective lens (capsula-free glass) PL 5X/0.12 |
Long anomaly field achromatic objective lens (capsula-free glass)PL L10X/0.25 | |
Long anomaly field achromatic objective lens (capsula-free glass)PL L20X/0.40 | |
Long anomaly field achromatic objective lens (capsula-free glass)PL L40X/0.60 | |
Long anomaly field achromatic objective lens (capsula-free glass)PL L80X/0.80 | |
The eyepiece tube | Red glasses, tilting 30˚,(built-in polarizing device can be switched) |
Falling lighting system | 6V 20W halogen lamp with adjustable brightness |
Falling illuminator comes with field light bar, aperture light bar, polarizer,(yellow, blue, green) filter and ground glass | |
Focusing mechanism | Falling shot up and down, coarse fretting coaxial focus, fretting cell value 2 m, coarse fretting elastic adjustable, with locking and limiting device |
converter | Five-hole (outward type ball positioning) |
Objective table | Three-layer mechanical mobile, size: 250mmX230mm, mobile range: 154mmX154mm |
