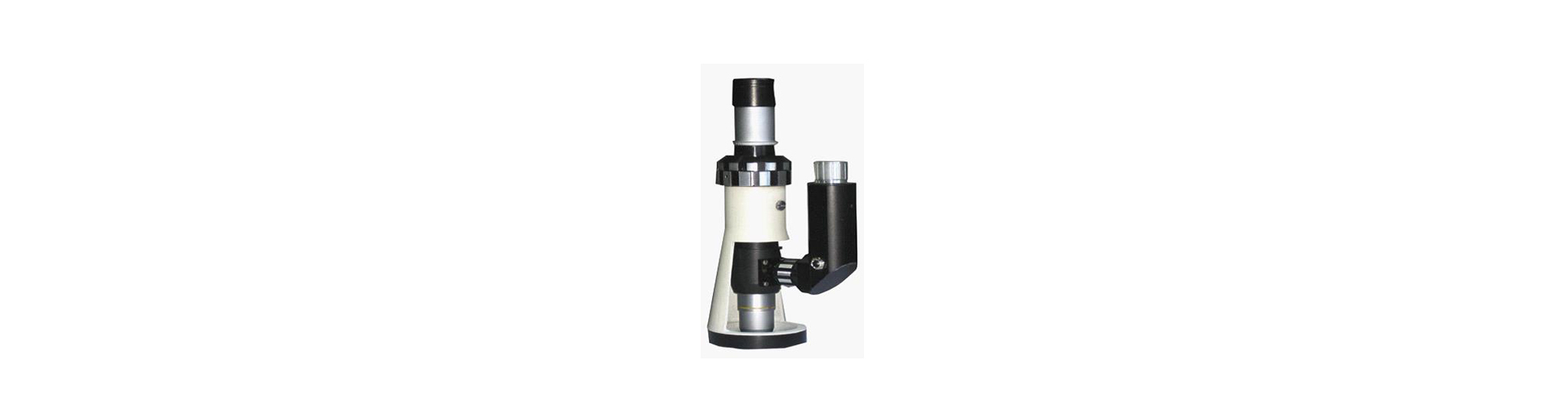

TL-OD hand-held metallographic microscope

Purpose of hand-held metallographic microscope:

Portable metallurgical microscope due to bring the vertical lighting light source, can be very convenient for field or unable to make sample to identify all kinds of metal and alloy structure can be widely used in factories, castings quality identification of laboratory, inspection of raw materials or the study of material handling very organization analysis, etc, can also be used as an antique jewels and surface microscopic observation.

Parameters of hand-held metallographic microscope:

1. Eyepiece: WF10X/18mm

2. Metallographic objective lens: PLAN10X, PLAN40X

3. Working distance (mm) :7.3 and 0.5

4. Total magnification: 100X, 400X

5. Mechanical tube length: 160mm

6. Focusing distance: 36mm

7. Light source: Adjustable LED lamp

Hand-held metallographic microscope available for purchase:

Magnetic two-dimensional platform base

Hand-held electric grinder

CCD adaptor lens, 3 million color camera (computer imaging is required)

Digital camera adaptor lens, digital camera interface, digital camera

Metallographic analysis software (modules can be selected according to different needs of customers)
