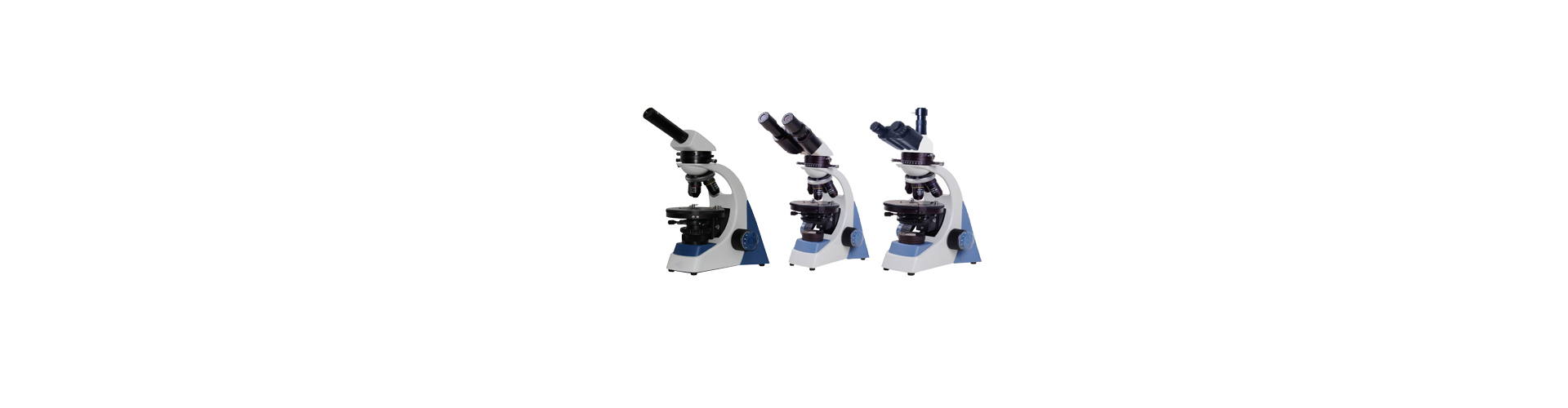

TL600 Series polarizing microscope

TL600 series polarizing microscope

Introduction to the instrument:

TL600 polarizing microscope can be used for routine detection and teaching transmission polarizing microscope, which is widely used in dry crystallography, analytical chemistry, medicine, biological science, environmental science, pharmacy, toxicology and other fields.

No matter single polarized light, orthogonal polarized light or cone light observation, can provide a clear and sharp image




The characteristics

▲ Microscope frame

Following the theory of ergonomics, from the user's point of view, THE TL600 USES a series of convenient and comfortable design.

The unique Y - shaped rack provides stable structure and wider usage space.

Low hand focus operation and load table adjustment design to minimize fatigue.

The simple adjustable hand wheel and the random limit function of the loading platform make the operation more convenient and comfortable.

Bring about observation tube

3 0° tilted hinged observation tube, pupil distance adjustment range is 55-75mm.

All TL600 observation cylinders can be equipped with 22mm field of view eyepiece, wide field of view eyepiece makes search faster and more convenient.

TL600 at the same time provides the eye height for the optional match.

Users can set it according to different observation heights.

In addition to the conventional binocular configuration, the triocular observation tube can be equipped with a microphotographic camera and has the following three spectral ratios:

1) 100:0 / were 0

2) : 100/0:10 0 0

3) 100: 0/20 :80, 0/0 :100

▲ Ergonomic observation cylinder

Meet the ergonomic observation requirements, reduce the fatigue of long-term observation.

Variable Angle binocular observation tube, variable Angle range of the head :4-30°, pupil distance: 55-75mm.

Ergonomic binocular tube, head Angle variation range :4-30°, pupil distance: 55-75mm, head stretch range: 0-35mm.

Bring the eyepiece

Combined with the CCIS optical system, the TL600 is equipped with a 10X22mm large field eyepiece with flat field and high eye point.

Even after a long period of observation, it can ensure that the user is comfortable to operate without fatigue.

Eyepiece diopter adjustable device is convenient for users to adjust according to vision.

In addition to the standard 10X, there are other multiple eyepieces to choose from.

The eyepiece can be fitted with a splitter plate.

Bring the converter

TL600 converter adopts internal positioning mechanical structure to ensure accurate positioning and smooth conversion when different multiples are converted.

Five - hole converter or six - hole converter for customers to choose different configuration requirements.

Bring objective

The new series OF EC-H objective lenses provide the best optical imaging quality for the TL600.

The lens adopts multi-layer wideband coating film to increase the transmittance and improve the contrast of image.

Lead-free optical materials meet ROHS environmental requirements.

The excellent aberration correction performance improves the flatness and resolution of the field of view, and the superior optical performance gives the highest color reduction.

The EC-H positive phase contrast objective lens has the best quality and exquisite workmanship as the bright field objective lens.

The improvement of the working distance of EC-H objective provides sufficient operating space for operators, and effectively ensures the safe switching from oil-immersed objective to dry objective.

At the same time, the optical design of the objective lens and the pipe diameter compensation design are combined to form a fully corrected middle image, and the high-quality digital microscopic image is obtained through the three-eyepiece tube.

▲ Mechanical cargo platform

The mechanical loading platform adopts hard wear-resistant surface with high hardness and corrosion resistance.

Load table stroke 80x53mm, with rotation and torque adjustment device for easy control of the X and Y axis.

The left and right hand load table is available for customers to choose. The minimum reading of the load table cursor is 0.1mm.

The stability and durability of the clamp are enhanced by the increase of the distance between the locating holes of the double clamp.

Bring about condenser

TL600 standard N.A. 0.90/0.13 swing in and swing out achromatic condenser, suitable for 2X-100X objective lens observation.

The concentrator height can be adjusted by the concentrator handwheel.

The center of the condenser can be adjusted by a pair of adjusting plate hands on the condenser holder.

N.A.0.9 Abbe condenser (with phase lining push-pull plate) and turbo phase lining condenser are optional.

Bring about lighting

TL600 set light lens reduces the diffraction effect under large aperture illumination by enlarging the aperture of the optical element of the microscope.

The 6V/30W halogen lamp kola lighting system is a powerful guarantee for the resolution and brightness of microscope imaging.

The special 3W LED module is interchangeable with 6V/30W halogen lamp, making it easier for users to switch lighting.

The filter holder is threaded into the filter cover so that the filter is built into the filter to prevent the filter from falling when the microscope is moved or stored.

▲ Phase contrast dark field observation accessories

The TL600 provides easy to operate inserts for phase lining and dark field observation.

An optional N.A.0.9 Abbe concentrator was used for phase lining observation, and the phase lining boards corresponding to PH1, PH2 and PH3 were used in combination with phase lining objective lenses of 10X, 20X, 40X and 100X with different ratios.

Dark field board is suitable for 4X-40X multiplier observation.

▲ Easy polarization

Two slots in the upper part of the converter for the polarizer TAB and lambda compensation TAB (which functions as a compensator).

The polarizer is installed below the condenser or on the filter holder of the lens.

Bring the CCD joint

CCD connector, diameter 38mm.

The new connector improves the image contrast greatly.

The three joint multiples are 1x, 0.65x and 0.5x respectively.

▲ Eye lift

The observation position can be adjusted by the eye-point height elevator. Each additional piece can be increased by 20mm, and three pieces can be increased by a total of 60mm.

▲ Photographic Apparatus

The user can perform microphotographic observation through TL600 triocular cartridge.

The system has a choice of 2.5X and 4X eyepieces.

The camera interface is provided by the camera manufacturer according to the camera model.

▲ Camera equipment

Always committed to the independent research and development of digital microscope, the goal is to provide users with more convenient and simple digital operation.

TL600 and MC Pro series digital camera products optical matching design, to obtain the most satisfactory hd images.

And all MCS are equipped with a complete set of application software to facilitate data analysis and research by users.

There are three or five megapixels available, in color or black and white, cooled or uncooled, and a variety of research-grade MCPro camera devices.

▲ Fluorescence device

TL600 can be used with fluorescence devices.

Four fluorescent filter sets can be installed simultaneously in the fluorescence device.

Different series of filter sets can meet the requirements of different observation applications.

At the same time, mercury lamps with reflectors provide further improvement in brightness, uniformity, and resolution.




TL600 series polarizing microscope

Instrument parameters:

modelTL-600TL-600ATL-600B
Observe the headServing temperature with single eyepiece tilted 30˚60 ˚ glasses. It can be adjusted by tilting the 30˚ distance between the two pupilsRed eyepiece, tilting 30˚ double pupil spacing 55-75mm can be adjusted
The eyepiecelarge WF10X(Φ18mm)
Cross - parting eyepiecelarge WF10X(Φ18mm)
objectiveAchromatic objective lens 4X/0.10
Achromatic objective lens 10X/0.25
Achromatic objective lens 40X/0.65 (spring)
Achromatic objective lens 100X/1.25(spring,oil)
Total magnification40-1000X
Partial detector0°-90° rotating polarizer, can be removed from the optical path
compensatorPath compensator: test board (grade 1 red), 1/4 test board
Focusing mechanismCoarse fretting coaxial focusing range 14mm, fretting cell value :2 m, with locking and limiting device
converterFour holes (inward-type ball positioning)
Objective tableStandard: Diameter 120mm, 360° rotary load table; calibration value 1°; vernier value 6 '
Optional: double mechanical movable object stage additional (100 mm) Φ rotary object stage (size: 135 mmx125mm moving range: 75 mmx35mm)
Abbe condenserNA.1.25 can rise and fall
Color filterThe blue color filter
Frosted glass
Up the analyzerPolarizing device located on the light collector, 360° rotatable
collectorHalogen lamps are suitable for lighting
Lighting systemBuilt-in dimming 3.5V/1W high brightness LED lamp
