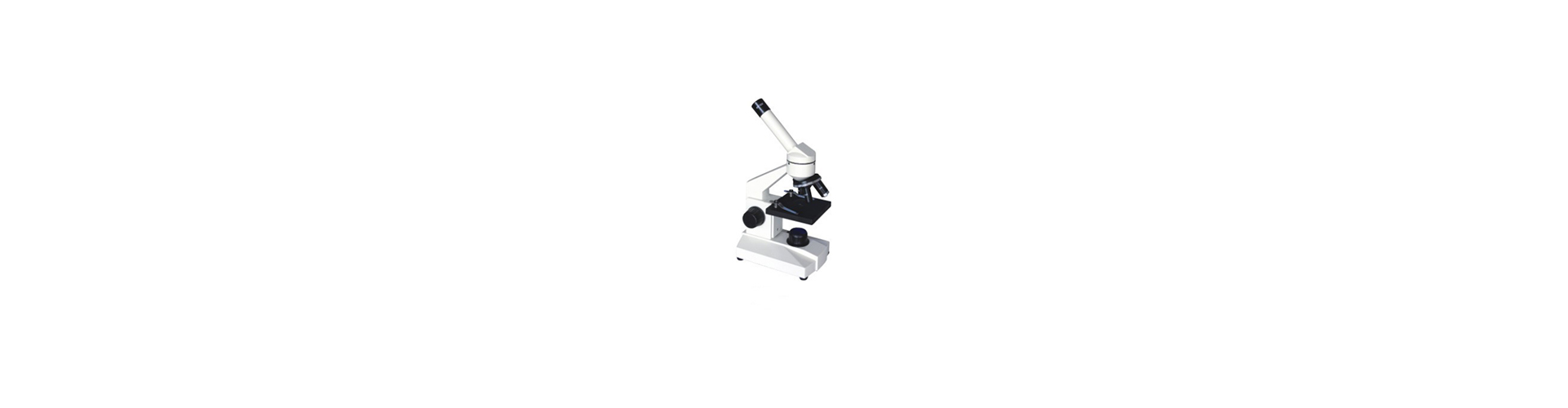

36XC student microscope

36XC student microscope


This kind of student microscope is one of the products independently produced by Shanghai Deilun Optics, which magnifies to 40-640 times with a single-eye three-hole converter. The model is small, and the aluminum alloy packaging box is easy to carry and optional electric light source is available. This student TV microscope is widely used for school teaching, teaching and family education, etc.

The instrument is small, light and easy to operate

Instrument use

Specimens used in general agricultural research and teaching in primary and secondary schools for the observation of various organisms, such as spores, cross-sections of rhizomes, pollen, insect heads, wings, feet, eggs, and footprints, etc.

In the medical clinical work of the human body three routine laboratory tests.Television microscope for students is widely used in school teaching, hospital teaching, family education and so on.The instrument is small, light and easy to operate.






36XC student microscope

Technical parameters

1、The eye lens

type

magnification

Field of view(mm)

The eye lens

10X

18

The eye lens

16X

11

2、objective

type

magnification

Numerical aperture(NA)

Working distance(mm)

Flat field achromatic objective

4X

0.1

17.5

10X

0.25

7.31

40X

0.65

0.63

3. Total magnification: 40X, 100X, 400X

4. Electric light source (220V)

5. External dimension of the instrument (width * length * height) 100*152*232mm

6. Weight: 1.8kg


Instrument completeness


1. One 36X type student microscope body

2. One objective lens 4X, 10X and 40X each

3. One 10X, one 16X Huygens eyepiece

4. One electric light source

5, pressure spring plate 1 pair

6. One reflective mirror (connecting frame)

7. One copy of operation manual

8. One copy of product qualification certificate


An instrument


Student TV type (36XCV type) Composition:

1. Student microscope 2. Electronic adaptor 3

Total magnification: 40X-- 640X, (type 36X)

Total magnification: 40X-- 1600X (Model 36XV)
