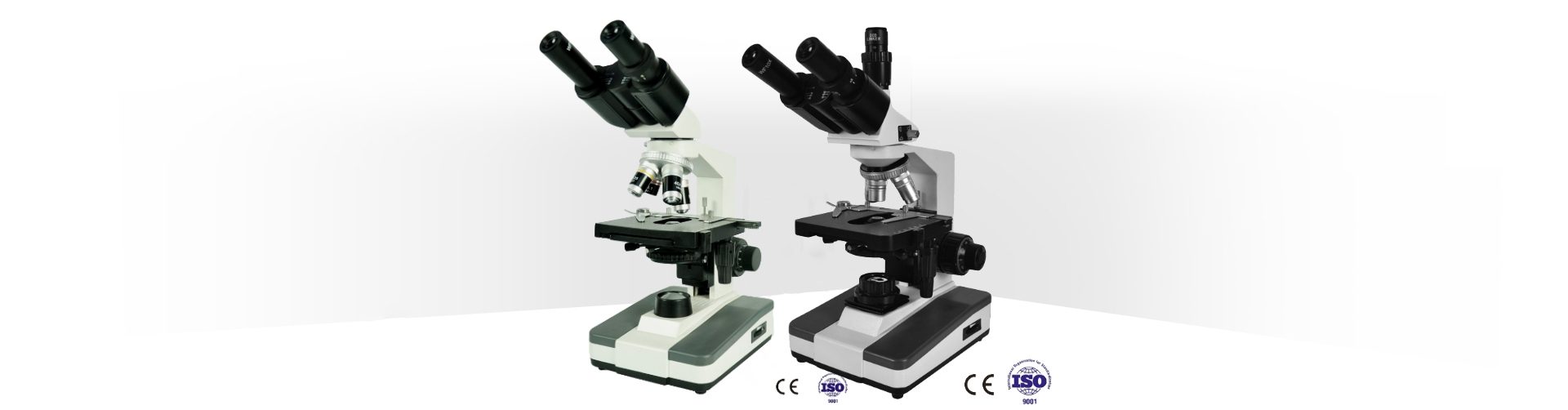

TL1800 series biological microscope

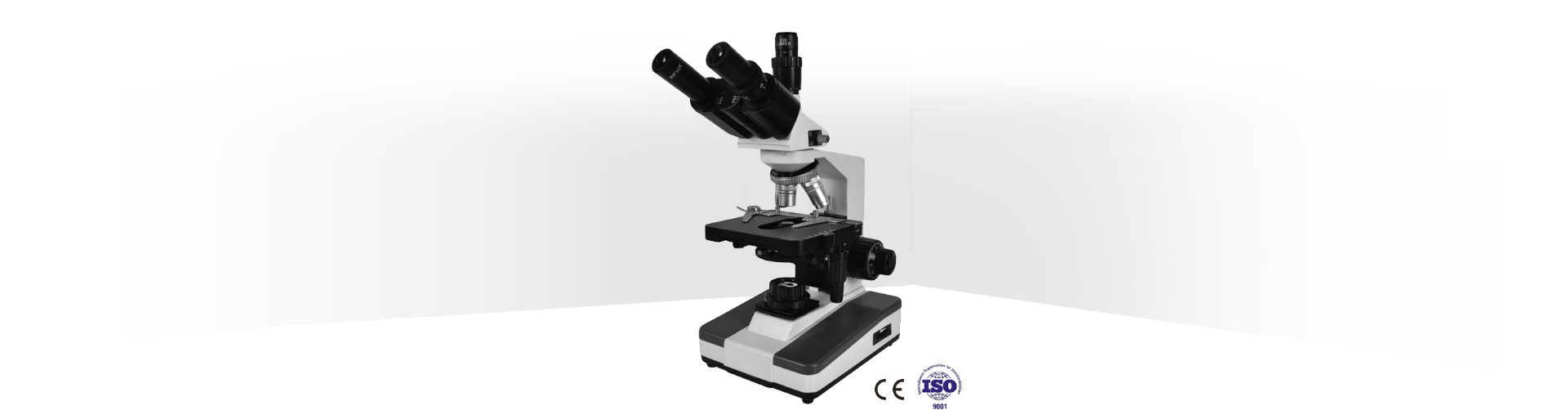

TL1800 series biological microscope

This series of products are the basic models of large models, which can be used for biological, pathological, bacteriological observation, teaching, professional research, clinical experiment and routine medical examination in various medical and health institutions, laboratories, agricultural science institutes, research institutes and institutions of higher learning.


The performance characteristics of

▲ With large field eyepiece, flat field achromatic objective lens, field of view is large and clear

▲ Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m

▲ 6V 20W halogen lamp lighting, brightness adjustable (optional LED cold light source)





TL1800 series biological microscope

Technical parameters

typeTL1801ATL1800ATL18030A
Observe the headRed lens (tilted 30˚)

Hinged binocular head with adjustable distance between eyes of 55-75mm;

Tilt at 30° and rotate at 360°

The hinged triocular head, the distance between the two pupil is 55-75mm and adjustable;

Tilt at 30° and rotate at 360°

The eye lens      Large WF10X (Φ 18 mm)

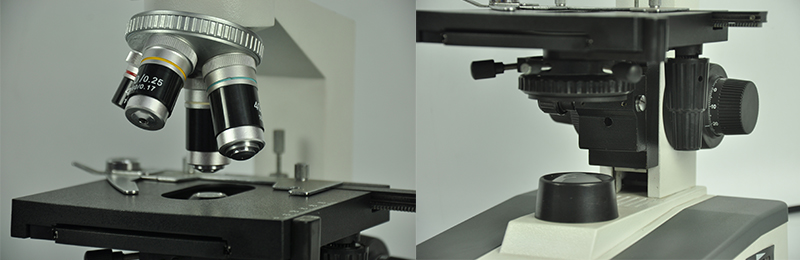

Flat field achromatic objective4X/0.10
10X/0.25
40X/0.65(spring)
100X/1.25(Spring, the oil)
Focusing systemCoarse fretting coaxial focus, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m.
converterFour holes (inward-type ball positioning)
Objective tableDouble-layer mechanical mobile (size :160mmX140mm, range of movement: 76mmX52mm)
Abbe condenserN.A.1.25 up and down
Color filterThe blue color filter
Frosted glass
collectorHalogen lamps are suitable
The light source6V 20W halogen lamp with adjustable brightness
Configuration of choose and buyUSB2.0 camera UC300\UC500\UC1000\UC1200\UC1600
USB3.0 camera MC630\MC2000

HDMI Camera WPC-185D-HDMI (WIFI and HDMI Output)

Wpc-236-hdmi (USB and HDMI Output)

Planar imagingDM1618 WIN10 operating system integrated tablet imager
objective20X/0.40
The eyepieceWF16X/11mm  WF20X/9mm
