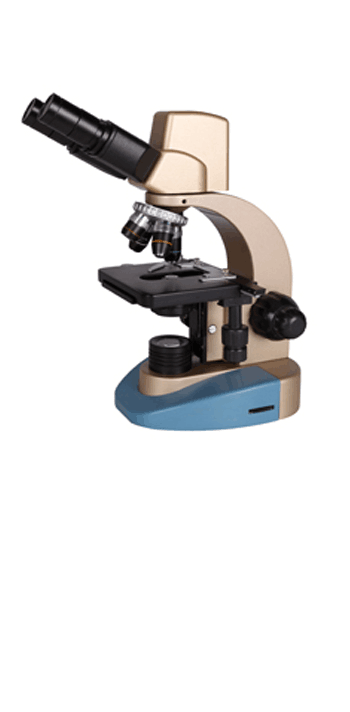

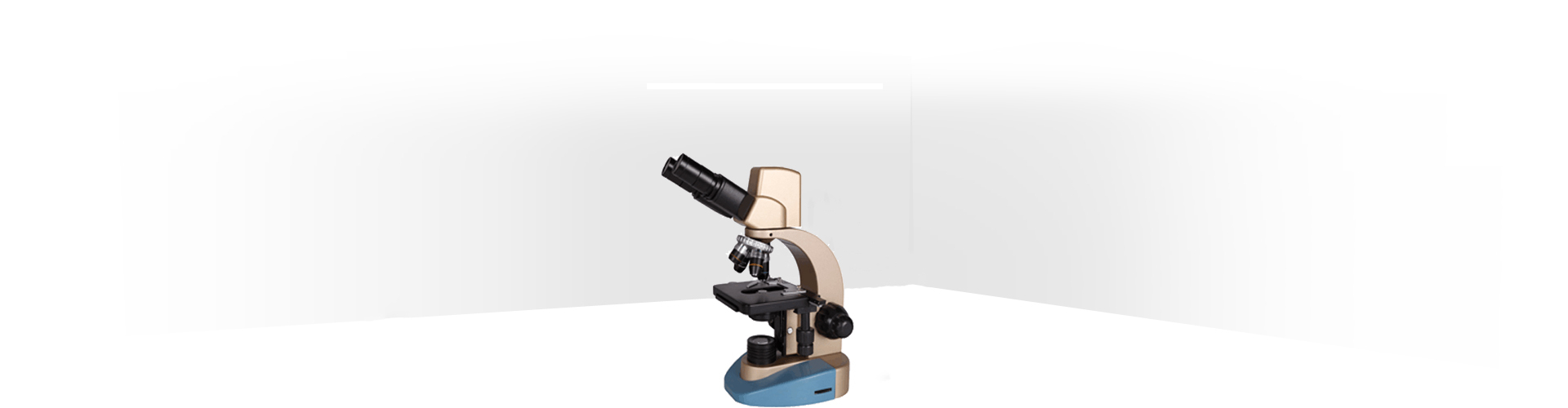

TL2018DM Built-in digital biological microscope

TL2018DM Built-in digital biological microscope


I. Purpose of the instrument:

Digital biological microscope is widely used in biology, cytology, histology, drug chemistry and other research work.

Digital biological microscope is suitable for health institutions, environmental protection units, laboratories, research institutes and institutions of higher learning.


Ii. Instrument Introduction:

The built-in digital biological microscope is an experimental model and a scientific research model belonging to the multi-function model, with better optical system and overall quality.

More humanized operation of the whole frame makes users feel more convenient and comfortable. The built-in or external camera channel can conveniently connect the video screen with the computer to observe, save, edit and print practical and static images.

Combined with a variety of software can be more specialized pathology, metallography, measurement, interactive teaching field needs.




TL2018DM Built-in digital biological microscope

Instrument parameters

Observe the head

 Rotating shaft digital binocular head, binocular tilt at 30 degrees, rotation at 360 degrees, adjustable pupil distance between 55mm-75mm, built-in 1/2"CMOS device, effective pixel of 3 million, USB signal cable

The eye lens

 WF10X WF16X

objective

 Limited-distance 195 series achromatic objective lens 4X 10X 40Xs 100Xs(OIL)

Total magnification

 40-1600X

converter

 Four-hole converter

condenser

 Abbe condenser NA1.25 with variable bar filter

Focusing system



Coaxial coarse fine focal length, stroke 20mm



Objective table



The size of double deck movable platform is 140x130mm


lighting

 0.5 watt LED lighting

Single package and size



Foam mail order box 350x245x460mm

Gross weight G.W.

 7kg

options

Aluminium alloy portable case
