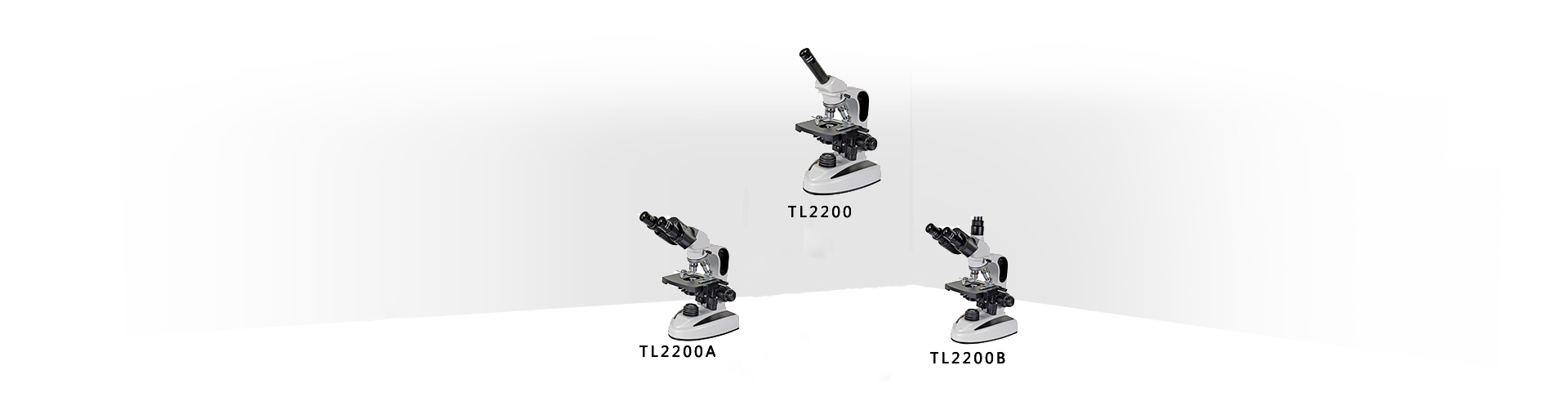

TL2200 series biological microscope

TL2200 series biological microscope

Instrument use:

TL2200 series biological microscopes are equipped with limited achromatoptic objective lens and large field eyepiece, with beautiful appearance, clear imaging, wide field of vision, easy to operate and other characteristics, which can be widely used in biology, medicine, industry, agriculture and other fields, is an ideal instrument for medical treatment, teaching, scientific research and other units

Performance Features:

Excellent optical system can provide excellent optical performance.

The streamlined design concept, coupled with soft colors, makes the microscope more aesthetically pleasing.

In line with the ergonomic requirements of the ideal design, so that the operation more convenient and comfortable, wider space.

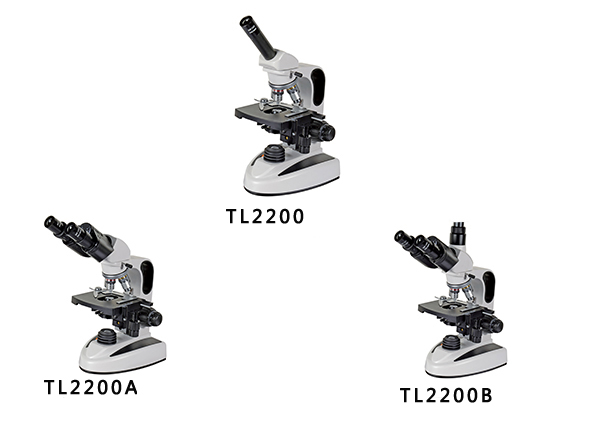

TL2200 series biological microscope

Instrument parameters:

 The technical standards

 Technical parameters

The optical system

 The finite far optical system is 160mm

Observe the head

 TL2200 monocular head,45 degree tilt, pupil distance 48mm-75mm

  TL2200A hinged binocular head,30 degree tilt, pupil distance 48mm-75mm

 TL2200B hinged triocular head,30 degree tilt, pupil distance 48mm-75mm with 0.5X interface

The eyepiece

 Large field eyepiece WF10X/18mm

objective

 Limited-distance 195 series achromatic objective lens 4X 10X 40Xs 100Xs(OIL)

 converter

 Tilting four - hole converter

 condenser

 Abbe condenser NA1.25 with variable light bar and color filter holder

 Focusing system

 Coaxial coarse fine tuning focal mechanism, fine tuning lattice value is 0.002mm, coarse moving stroke is 30mm per turn

 Objective table

Double deck movable platform size: 135x135mm;

Range of movement: 70mmx50mm



 lighting



Transmission lighting system: 3W/LED lighting;

Adjustable brightness


 Single package and size

  Foam+Carton 350x245x460mm

Gross weight G.W.

 7kg

Optional accessories



Eyepieces: WF16×, WF20×, P16×


Objective Lens: 20× (s), 60×(s)


0.5 times the camera interface


UC300 digital camera


UC500 digital camera
