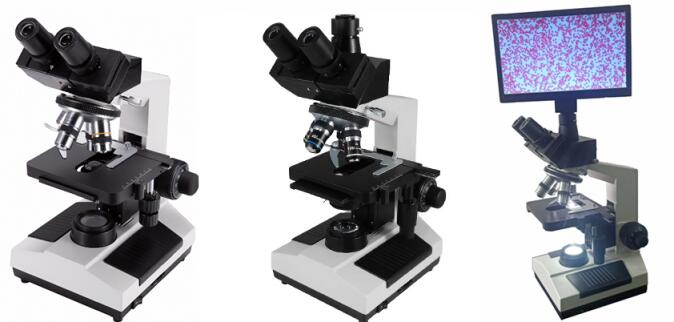

XSP-8C series biological microscope

XSP-8C series biological microscope

Introduction to the instrument:

With its reliable stability, superior price - to - price, has been widely recognized in various application fields.

Excellent optical system and reliable operation structure make the imaging clearer and the operation easier.

It can be widely used in biological, agricultural and animal husbandry, textile fiber, pharmaceutical chemical particles and other observation and research.



Functions and Features:

1. Traditional models with stable quality and high cost performance.

2. Planetary coaxial coarse and micro focusing device is adopted for comfortable and stable focusing.

3. Halogen illumination and adjustable Abbe condenser are adopted to achieve uniform illumination and good contrast.



4. Two optical output channels, one for observation and the other for connecting the camera device.

5. Double-layer mechanical carrier with scale is adopted to adjust the handwheel in coaxial and longitudinal direction for easier operation.




XSP-8C series biological microscope

Technical parameters

Technical specifications



model

XSP-8C

XSP-8CA

Observation head

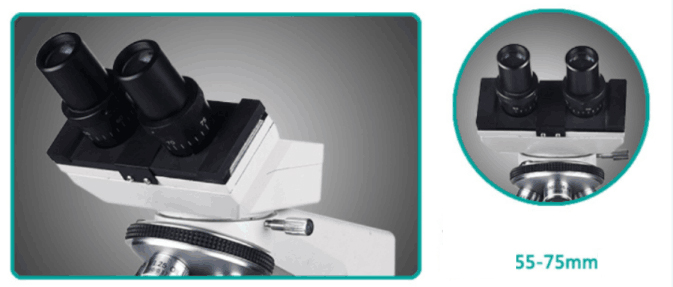

Observation head translational binocular head (55mm-75mm)


Translational triocular head (55mm-75mm)


Eyepiece

 WF10X / 18

WF16X/11

Objective

4X dry lens numerical aperture 0.10na working distance 37.5mm

10× dry mirror is 0.25NA and the working distance is 7.31mm

40× spring dry mirror numerical aperture 0.65NA working distance 0.63mm

100× spring oil mirror is 1.25NA and the working distance is 0.18mm

Total magnification

40-1600x

Converters

An outward - inclined four - hole objective lens converter

mechanical cylinder

 160 mm

Double-layer mechanical carrier

Size 140X140mm, movement range 75X45mm cursor: 0.1mm

Focusing mechanism

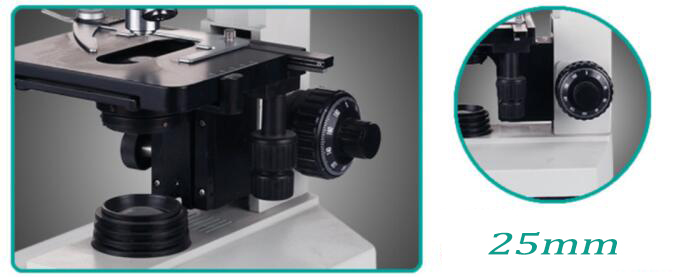

 coaxial coarse fine-tuning with focusing handwheel and focusing lock, adjustable range: 25mm fine-tuning grid value: 0.002mm

Abbe condenser

NA 1.25 with variable diaphragm and color filter (ground glass) lifting and adjusting 20 mm

Lighting system

with variable diaphragm open field transmission lighting brightness adjustable LED cold light source (can be upgraded to charging type)

Power supply

 110-220 - v / 50 to 60 hz

Available for attachment

3 million, 5 million pixel CMOS camera

Auxiliary objective lens: 0.5X 1X
