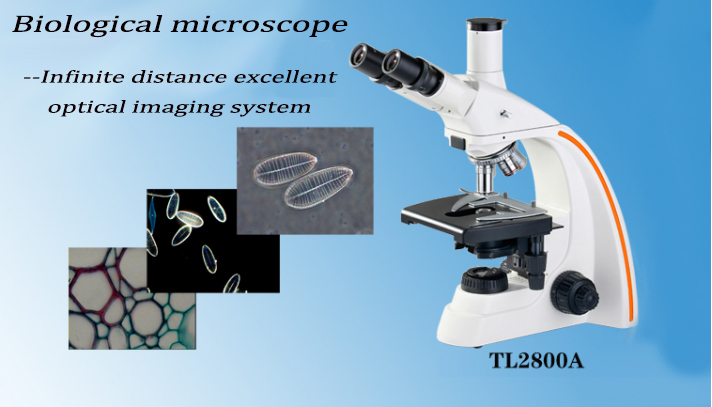

TL2800 series research level biological microscope
TL2800 series of biological microscopes are equipped with infinite far flat field achromatous objective lens and large field eyepiece, with the characteristics of beautiful appearance, clear imaging, wide field of vision, easy to operate and so on. They can be widely used in biology, medicine, industry, agriculture and other fields, and are ideal instruments for medical treatment, teaching, scientific research and other units
![%8~IV~_[9)6N35NDP6XA]_C.jpg](/uploadfile/20201015/1602747534453065.jpg)
The performance characteristics of
Excellent optical system can provide excellent optical performance.
The streamlined design concept, coupled with soft colors, makes the microscope more aesthetically pleasing.
In line with the ergonomic requirements of the ideal design, so that the operation more convenient and comfortable, wider space
![)_]1G428$JADE@@%5)N~O32.png](/uploadfile/20201015/1602747765390997.png)
.

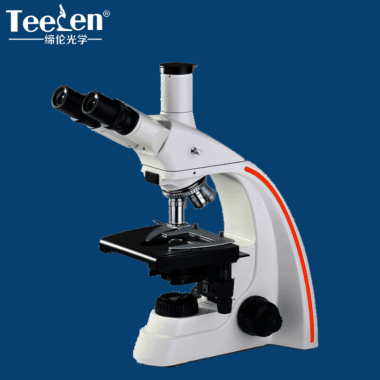

TL2800 series research level biological microscope
Technical specifications | ||
The eyepiece | large WF10X(Number fieldΦ22mm) | |
large WF15X(Number fieldΦ13mm) | ||
Infinite distant flat field achromatic objective lens | PL 4X/0.10Working distance：19.8 mm | |
PL 10X/0.25Working distance：5.0mm | ||
PL 40X/0.65(spring)Working distance：0.66 mm | ||
PL 100X/1.25(Spring,oil) Working distance：0.36mm | ||
The eyepiece tube | TL2800B HBG | Binocular microscope(tilt 30˚), eye point height can be adjusted |
TL2800A HBT | Triocular microscope (tilting 30˚), eye point height can be adjusted | |
Focusing mechanism | Coarse fretting coaxial focusing with locking and limiting device, fretting cell value :1 m. | |
converter | Four holes (inward-type ball positioning) | |
Objective table | Double-layer mechanical mobile :193mmX155mm, mobile range: 75mmX50mm | |
Abbe condenser | N.A.1.25 up and down | |
Color filter | Blue filter, ground glass | |
collector | A built-in field stop in a light collecting mirror. | |
The light source | High power white LED, adjustable brightness | |
Match the device | To the mirror | Centering telescope |
objective | Infinite distance phase line flat field achromatic difference 10X/0.25 PHP | |
Infinite distance phase line flat field achromatic difference 20X/0.40 PHP | ||
Infinite distance phase line flat field achromatic difference 40X/0.65 PHP(Spring) | ||
Infinite distance phase line flat field achromatic difference 100X/1.25 PHP(Spring,oil) | ||
