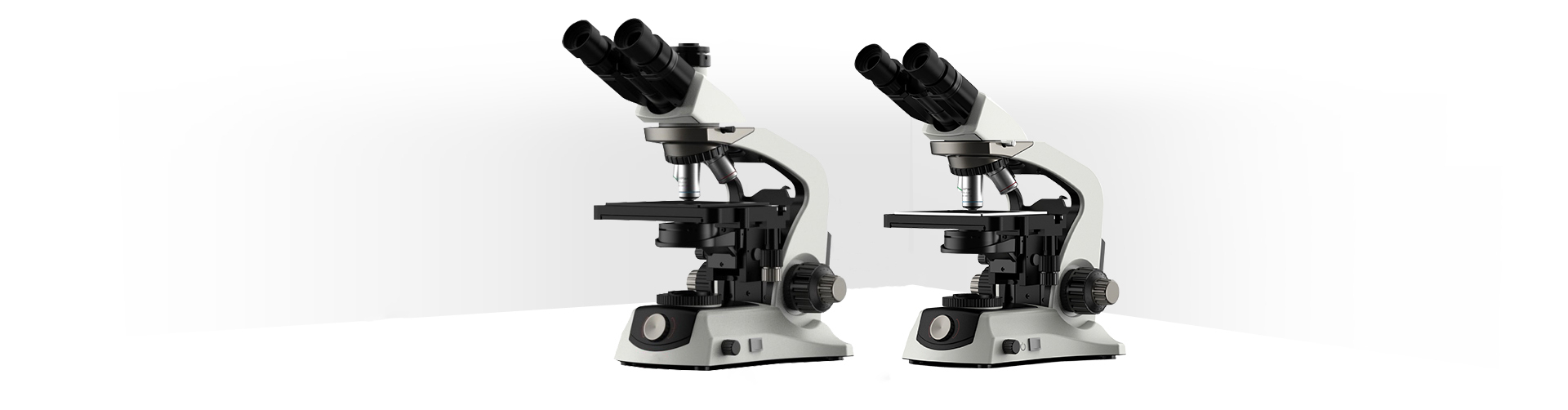

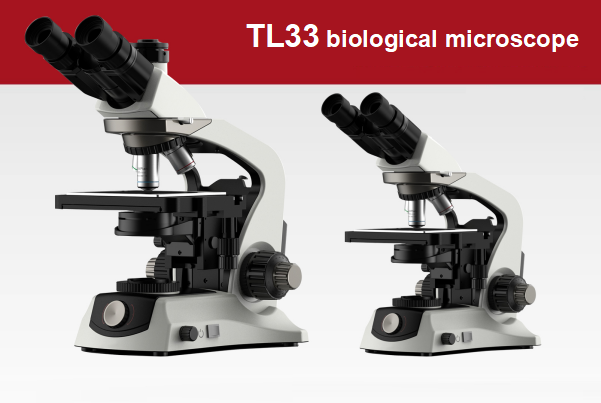

TL33 biological microscope

Instrument usage:

Instrument usage:

The TL33 series biological microscope is equipped with an infinite distance flat field achromatic phase contrast objective and a large field of view eyepiece. It has the characteristics of beautiful appearance, clear imaging, wide field of view, and easy operation. It can be widely used in biology, medicine, industry, agriculture, and other fields. It is an ideal instrument for medical, teaching, scientific research and other units。

Instrument advantages:

*In 2024, the new series of products from Dylan Optics combines beauty and quality. The imaging quality of this machine has made a qualitative leap compared to older products. At the same time, it has a novel appearance with a streamlined aesthetic, and can be customized in appearance colors. It is an essential instrument for teaching and laboratory use;

*Adopting excellent optical systems can provide excellent optical performance.

*The streamlined design concept, combined with soft and innovative colors, makes the microscope more aesthetically pleasing.

*An ideal design that meets the requirements of ergonomics, making operation more convenient and comfortable, and providing a wider space.

Instrument parameters:

*Optical System: Equipped with an infinite far-field optical system, the whole machine is designed with mold proof and a large field of view eyepiece. It has the characteristics of beautiful appearance, clear imaging, broad field of view, and easy operation. It can be widely used in biology, medicine, industry, agriculture, and other fields, and is an ideal instrument for medical, teaching, scientific research and other units。

*Observation head device: The mirror tube can rotate 360 degrees, and the displacement of the mirror center during rotation is ≤ 0.06mm; 30 ° tilt; The hinged binocular observation (with a magnification difference of ≤ 2.0% between the left and right systems, and a positional difference of ≤ 0.1mm at zero viewing angle) and a third-party connecting port, with a pupil distance adjustment range of 50-75mm, are used to fix the observation tube head with an internal hexagonal screw or choose a portable screw。

*Eyepiece configuration: Randomly configure high eyepiece design eyepiece WF10X/22mm; The magnification accuracy of the eyepiece should not exceed ± 2%, and there is a slot design on the eyepiece barrel to lock and position the eyepiece to prevent it from falling off. Adjustable binocular visibility makes binocular observation easier。

*Objective: Broadband coated EF-N195 pure copper infinite far-field achromatic phase contrast objective; The accuracy of objective magnification shall not exceed ± 5%; 10XPHP, 20XPHP, 40XPHP (spring), 100XPHP (spring, oil); The error of the objective lens is 10-40, with a focus of ≤ 0.06mm; 40-100 autofocus ≤ 0.03mm。

*Converter: Metal material four hole positioning external tilt converter; The positioning stability is ≤ 0.006mm, and there is no need to raise or lower the loading stage when replacing the slice, avoiding various inconvenient operations that may damage the objective lens during the use of the external tilt objective lens converter.

*Loading platform: Triangle guide XY double-layer composite mechanical mobile loading platform; Non repeatability of lateral 5N horizontal force ≤ 0.005, anti-corrosion and wear-resistant. Rectangle, size 190X140mm, stroke 60x90mm, minimum reading value 0.1mm。

*Focal adjustment mechanism: coarse fine tuning coaxial, with hand wheel tightening adjustment device and limit positioning device. Both sides of the operating wheel for precise focusing; coarse fine tuning focal knob on both sides, with overload protection device, focusing range: 25mm, fine tuning grid minimum grid value: 0.002mm。

*Condenser: N.A.1. 25 Abe concentrating mirror, the first bracket type device plate in China, effectively controls the deviation of the concentrating system, accurately limit the gear rack structure, to ensure more accurate observation height, open field, phase contrast observation brightness can be adjusted. The condenser is a metal material without any plastic parts. The height is self-adjustable。

*Lighting: the original production power of 3W LED cold light source lighting, rechargeable, Type C port, the brightness is adjustable, the life can reach more than 10 0,000 hours of light collection mirror seat can not be easily removed, to prevent the frequent removal of the change of the light road center, and affect the observation effect。

*Backboard: Designed with a portable handle for users to move and reposition。

*Additional features: With reserved space for simple phase contrast and dark field observation, as well as simple polarization observation。

*Camera interface configuration: dedicated C-type card port, digital camera dedicated interface)

Instrument details diagram:

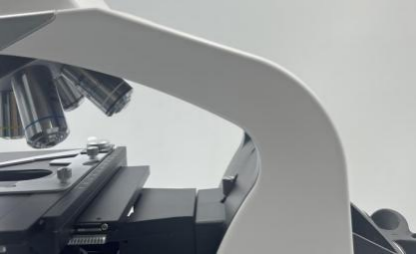

● Humanized design handle

Adopting ergonomic principles, the carefully designed handle conforms to the natural posture of a human hand, allowing users to grip the microscope more stably and reducing hand fatigue during prolonged use.

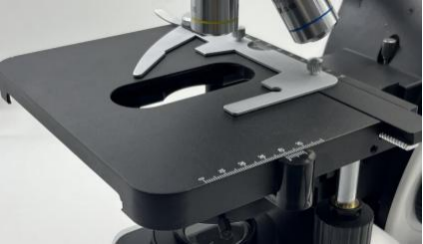

●Triangle guide XY composite mechanical moving platform

Solidly support and fix the sample, ensuring the stability of its position and shape during observation. The non repeatability of the lateral force under a 5N horizontal direction is ≤ 0.005. It is corrosion-resistant and wear-resistant, with a minimum reading value of 0.1 mm.

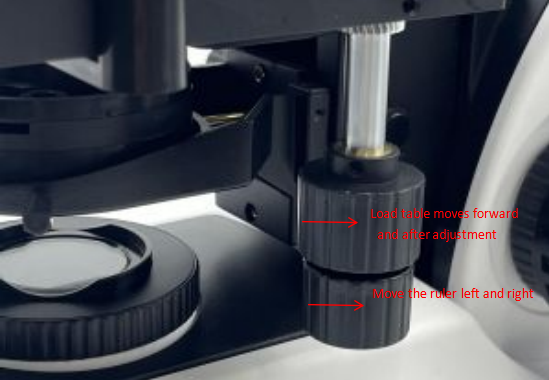

●XYZ mobile handwheel

This design can control the movement of the control panel through intuitive manual operation. Has a large range of movement and flexibility. The experimenter can adjust the position of the handwheel as needed to better observe and operate the sample.

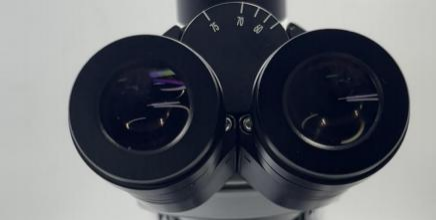

●Eyepiece configuration and pupil spacing

In order to meet the personalized needs of different users, the adjustable range of pupil spacing is between 48 millimeters and 75 millimeters, ensuring that each user can accurately set according to their own conditions. The eyepiece with high eyepoint design has adjustable binocular visibility, making binocular observation easier and providing users with a more comfortable user experience.

●Cable storage cabinet and cable collection clamp

It is a storage device designed specifically for cable management, which can effectively store and protect power cords from external factors such as dust, moisture, and impact. This not only extends the service life of the cable, but also ensures the safe and stable operation of the equipment. The storage cabinet can effectively reduce cable entanglement and damage, thereby avoiding unnecessary maintenance and replacement costs.

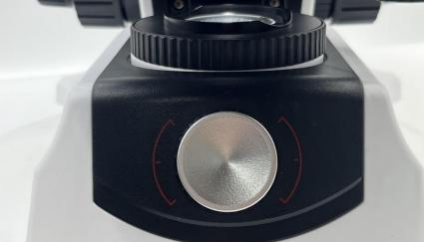

●Bright circuit regulator

This adjuster is a device used to adjust the intensity and uniformity of light in the microscope's optical path. By rotating the adjustment, the brightness of the bright field and phase contrast light source can be controlled. The adjustment method of the knob is also in line with human hand operation habits. This humanized design makes users more adept at using the brightness adjuster, improving operational efficiency and user experience, thereby accurately adjusting to the brightness that best suits them.

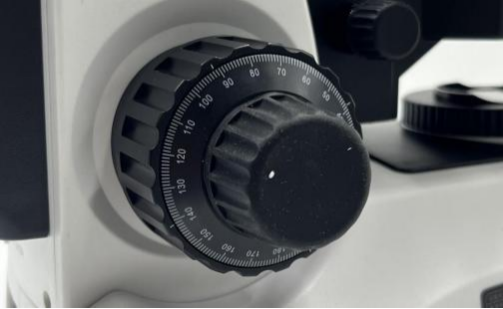

●Coarse and fine focus adjustment

By adjusting the coarse focus and fine focus, the sample is ensured to be clearly visible in the field of view, thereby improving the observation effect and accuracy. By using a graduated adjuster, users can easily adjust the focal length of the microscope.

●High eye point visual adjustment

Observers can clearly observe the specimen image through a microscope, and by adjusting the visual adjustment ring of the microscope, the difference in binocular vision can be corrected, so that each eye can observe a clear and sharp image through the corresponding eyepiece. Ensure that users have the best visual experience while using the microscope.
