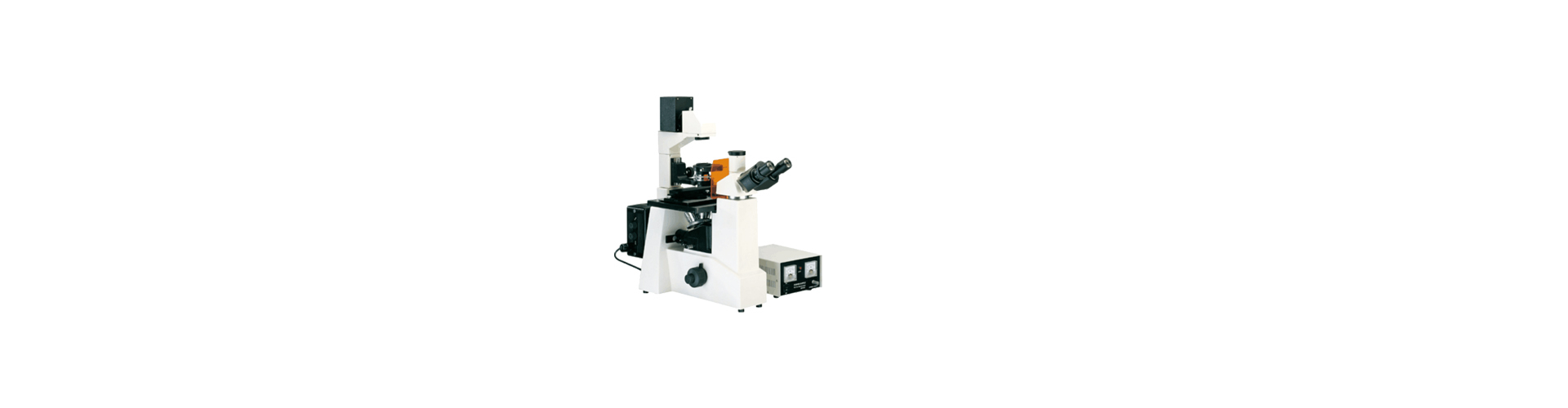

DXY-1 Inverted fluorescence microscope

Inverted fluorescence microscope

Introduction to the instrument:

Knocking - 1 inverted fluorescence microscope is composed of inverted microscope and fall shoot fluorescent microscope, the instrument is equipped with a long working distance flat field achromatic telescope, large eyepiece, inverted phase contrast observation time configuration long working distance flat field expertise and with phase contrast of the objective working distance condenser, fluorescence observation can be carried out when the excitation switch color filter group.

The instrument is characterized by clear imaging, broad field of view, compact structure, beautiful appearance, and comfortable operation. It is mainly suitable for microscopic observation of living cells and tissues, fluids, sediments and other materials in culture bottles or petri dishes, and can also be used for fluorescence microscopic observation of unstained transparent bodies and fluorescent sections.

It is an ideal instrument for biology, cytology, oncology, genetics, immunology and other research work.

It can be used by scientific research institutes, medical treatment, epidemic prevention, agriculture and animal husbandry departments.

Performance Features:

Equipped with large field eyepiece and long working distance achromatic objective lens, the field of view is large and clear.

Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m.

The moving mechanism of the platform is detachable.

Phase lining device is configured, including long working distance phase lining condenser, phase lining objective lens, telescope in the middle.

A fluorescent device with four fluorescent filter sets is provided.

Transmission lighting adopts 6V 30W halogen lamp with adjustable brightness;

Fluorescence emission lighting using 100W high pressure mercury lamp, external power box.

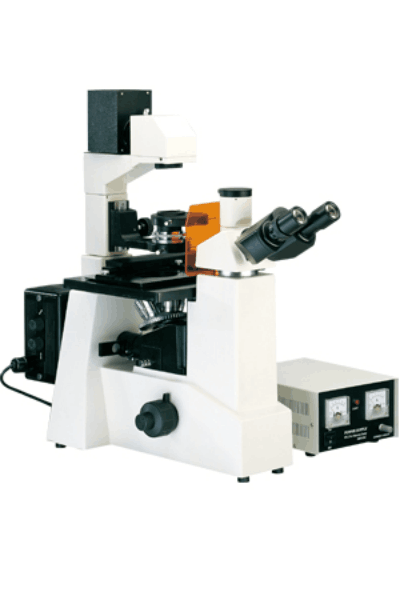

Inverted fluorescence microscope

Large field eyepieceWF10X (Φ20mm)
Long working distance flat field achromatic objective lensPLL10X/0.25Working distance8.8mm
(Cover glass thickness 1.2mm)PLL25X/0.404.78mm
PLL 40X/0.60(spring)3.32mm
The main bodyThe ternary headCan be 100% light photography 100%
Inverted transmission illumination6V30W halogen lamp with adjustable brightness
Falling fluorescence systemDomestic 100W high pressure mercury lamp
Excited filter setBlue - green excitation filter setBlue excitation wavelength:420~485nm
Green excitation wavelength:460~550nm
Ultraviolet and violet excited color filter groupUltraviolet excitation wavelength:330~400nm
Violet excitation wavelength:395~415nm
Objective tableRemovable mobile table, size: 208mmX224mm, mobile range :79mmX112mm
converterFive holes, ball positioning and bending
Match the deviceExtra-long working distance Achromatic phase lining objective lens in flat field (Cover glass 1.2mm)PLL10X/0.25PHP2Working distance8.8mm
PLL25X/0.40PHP24.78mm
PLL40X/0.60PHP23.32mm
Rotating shaft type phase liner
Centering telescope
Extra-long working distance Achromatic phase lining objective lens in flat field (Cover glass 1.2mm)Adjustable lifting, NA=0.4, working distance: 50mm
Specimen planeSuitable for placing Φ 68 mm or 77 mmx29mm culture vessel
Suitable for 96-well culture vessels of 128mmX85mm
Suitable for placing 82mmX57mm culture vessels
Power boxAC AC: 110V or 220V
