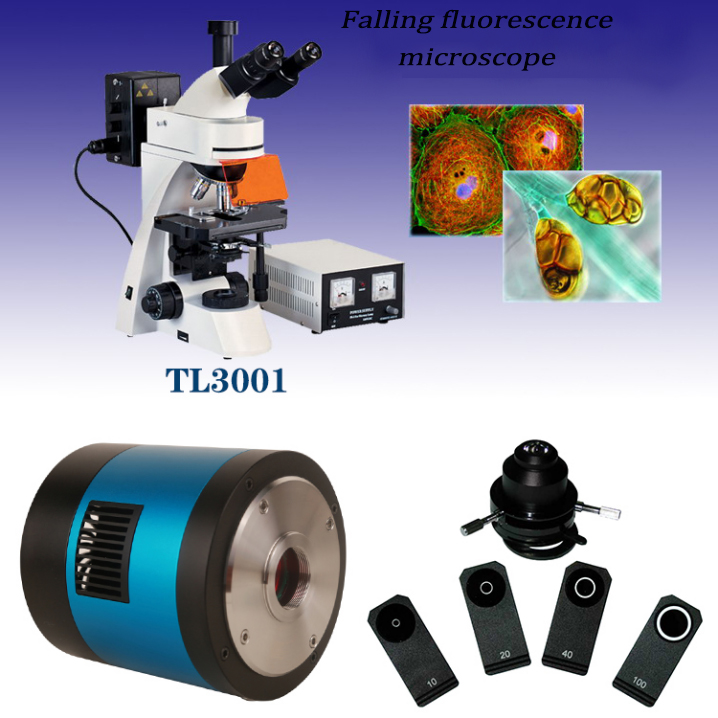

TL3001 Falling fluorescence microscope

TL3001 Falling fluorescence microscope


Introduction of instrument

TL3001 emission fluorescence microscope is suitable for fluorescence microscopy and transmission field observation.

It is an ideal instrument for the research of biology, cytology, oncology, genetics, immunology and so on. It can be used by scientific research, universities, medical and epidemic prevention departments.


The instrument features

With large field eyepiece and infinite far flat field achromatic objective lens, the field of view is large and clear

Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value: 2 m

20W 6V halogen lighting with adjustable brightness.




Instrument configuration


model

TL3001

The eyepiece

large WF10X(Φ20mm)

objective

Infinite distant flat field achromatic objective lens PL 4X/0.10

Infinite distant flat field achromatic objective lens PL 10X/0.25

Infinite distant flat field achromatic objective lens PL 40X/0.65(spring)

Infinite distant flat field achromatic objective lens PL 100X/1.25(spring,oil)

The eyepiece tube

Red lens (tilting 30˚)

C interface

1X C CCD special interface

Focusing mechanism

Coarse fretting coaxial focus, coarse fretting adjustable, with locking and limiting device plate, fretting cell value :2 m.

converter

Four holes (inward-type ball positioning)

Objective table

Double-layer mechanical mobile (size :210mmX140mm, range of movement: 75mmX50mm)

Abbe condenser

N.A.1.25 up and down

Color filter

The blue color filter

Frosted glass

collector

Halogen lamps are suitable

The light source

6V 20W halogen lamp with adjustable brightness

Emitter fluorescence device

Mercury lamp light box100W/DC

Power box: ALTERNATING current :110V or 220V

Fluorescent filter set B Excitation light band:420~485nm

Fluorescent filter set G Excitation light band:460~550nm

Fluorescent filter set UV Excitation light band330~400nm

Fluorescent filter set V Excitation light band395~415nm







name

Category/Technical parameters

The eyepiece

Large WF16X (Φ 11 mm)

Division 10 x (Φ 20 mm), value of 0.1 mm/case

objective

Achromatic aberration of infinite distant flat field 20X/0.40

CCD joint

0.5X

0.5X with dividing scale, grid value 0.1mm/ grid
