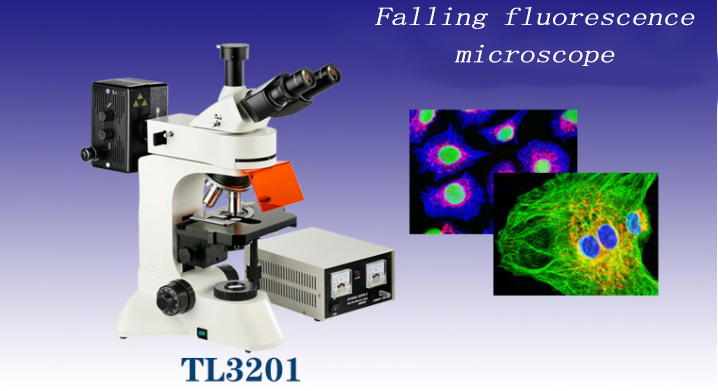

TL3201 emitting fluorescence microscope
It is suitable for fluorescence microscopy and transmission field observation.
The optical system has clear, bright and wide field of vision by using achromatic fluorescent objective lens and large field eyepiece without magnification chromatic aberration.
In line with the ergonomic requirements of the body design, so that you in the operation process more comfortable and relaxed.
It is an ideal instrument for research in biology, cytology, oncology, genetics, immunology, etc. It can be used by scientific research, universities, medical and epidemic prevention departments.
Introduction of instrument
Infinite distance optical system and modular function design are adopted.
Equipped with high quality achromatic fluorescent objective lens, the image is clearer and brighter.
The wide flat field eyepiece: view Ф 22 mm in diameter.
Coarse fretting coaxial focusing mechanism with locking and limiting device, fretting cell value: 2 m.
Transmission lighting system: built-in field light bar, 6V30W halogen lamp lighting, with heat sink, adjustable brightness.
Falling lighting system: 100W/DC high pressure mercury lamp, power box 220V/110V optional.
Three eyepiece tube can freely switch between visual observation and microphotography, 100% light can be passed during photography, suitable for low illumination microimage shooting.

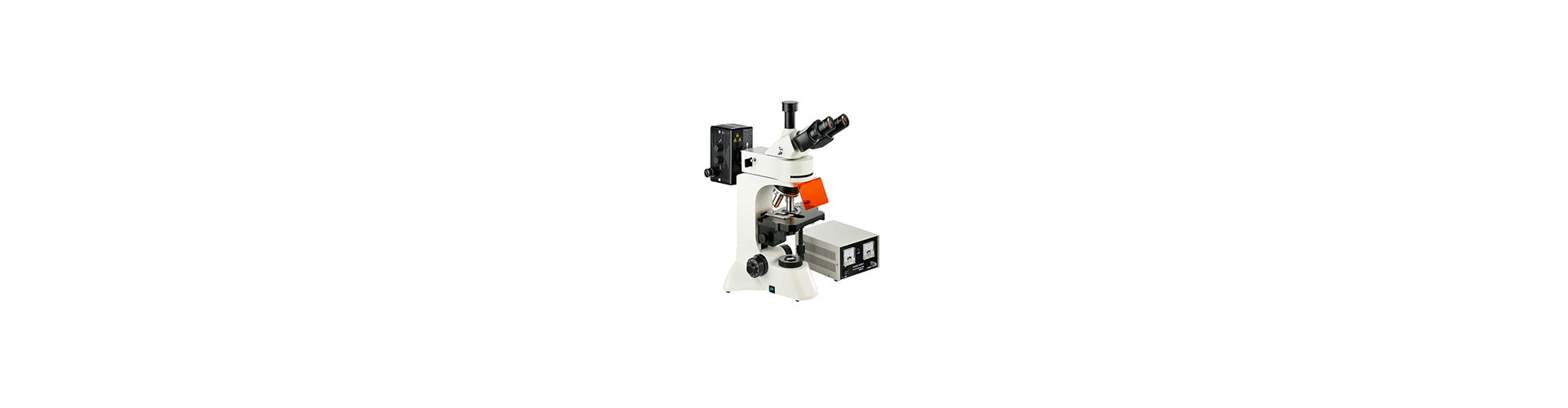

TL3201 emitting fluorescence microscope
Instrument parameter configuration
model | TL3201 |
The eyepiece | Large WF10X (Φ 22 mm) |
objective | Optical magnification |
PL 4X/0.10 Working distance: 19.8mm | |
PL 10X/0.25 Working distance: 5.0mm | |
PLF L40X/0.85 (spring) Working distance: 0.42mm(no magnification color difference) | |
PL 100X/1.25(spring, oil) Working distance: 0.36mm | |
Optical magnification | 40X-2000X |
System amplification factor | 40X-2600X |
The eyepiece tube | 60 ˚ tilt 100% light splitting system with three eyeglasses |
C interface | 1X C CCD special interface |
Falling fluorescent lighting system | Power box 110V/220V is optional |
Mercury lamp of 100 w/DC | |
Rotating disc fluorescent falling illuminator (including uv, violet, blue and green light-excited color filters) | |
Fluorescent filter group B | Excitation light band:420~485nm |
Fluorescent filter group G | Excitation light band:460~550nm |
Fluorescent filter group UV | Excitation light band:330~400nm |
Fluorescent filter group V | Excitation light band:395~415nm |
Focusing mechanism | Coarse fretting coaxial focus, fretting cell value :2 m, with locking and limiting device |
converter | Five-hole (inward-type ball positioning) |
Objective table | Double-layer mechanical mobile (size :210mmX140mm, range of movement :75mmX50mm) |
Transmission lighting system | Abbe condenser NA.1.25 can rise and fall |
Blue filter and frosted glass | |
Light collector, suitable for halogen lighting (built-in field light bar) | |
6V 30W halogen lamp with adjustable brightness |
Instrument options
name | Category/Technical parameters |
The eyepiece | 10 x partition eyepiece (field of view for several Φ 22 mm) value is 0.10 mm/case |
objective | Infinite distance flat field achromatic objective PL 60X/0.80 working distance: 0.46mm |
Infinite distance flat field achromatic fluorescent objective PL FL10X/0.35 working distance: 2.37mm | |
CCD joint | 0.5X |
0.5X with dividing scale, grid value 0.1mm/ grid |
