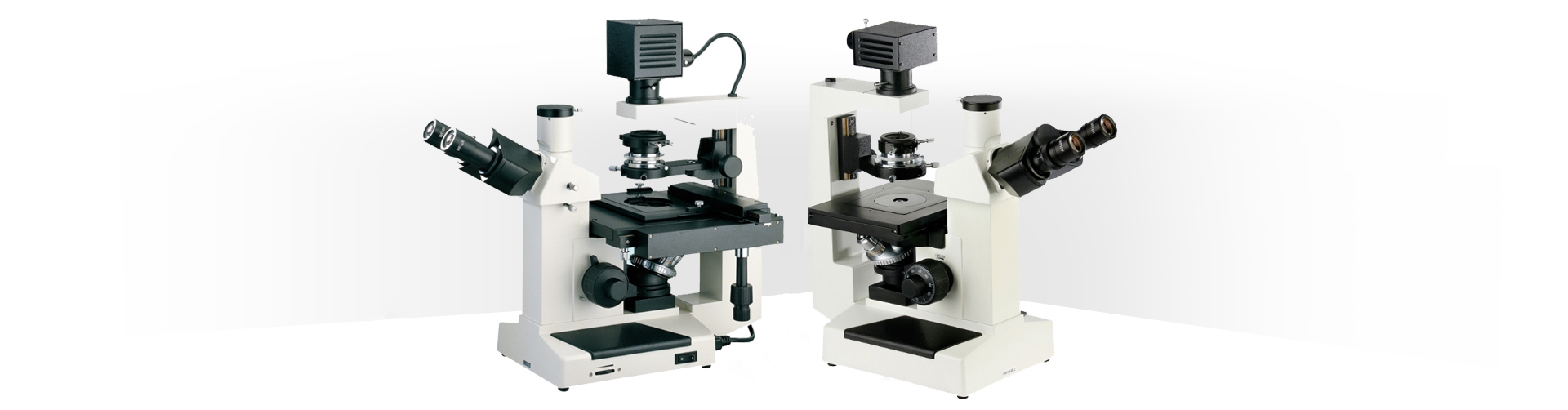

DXS-1 inverted biological microscope
Introduction to the instrument:
The DXS-1 inverted biological microscope is equipped with a long working distance achromatic objective, a large field eyepiece and an adjustable condenser.
The compact structure and reasonable operation position make the observer feel relaxed and comfortable during the operation of the instrument.
The product is suitable for microscopic observation of cell tissue, transparent liquid tissue and dynamic microscopic observation of cultured tissue in culture dish.
Can be used in scientific research institutes, institutions of higher learning, medical and health, inspection and quarantine, agriculture and animal husbandry and dairy sectors

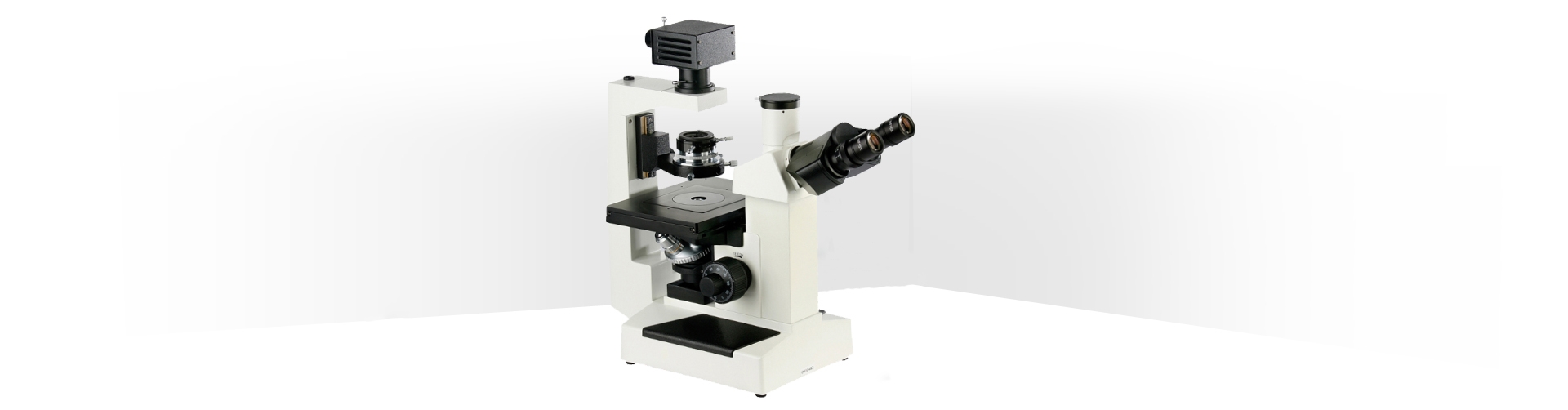

DXS-1 inverted biological microscope
Instrument parameters:
Technical specifications | ||
The eyepiece | WF10X view (view Φ 20 mm) | |
Centering telescope | ||
Long working distance flat field achromatic objective lens | objective
| PLL 10X0.25 Working distance：8.8 mm，Thickness of cover glass：1.2mm. |
PLL 25X0.40 Working distance：4.8 mm，Thickness of cover glass：1.2mm. | ||
PLL 40X0.60 Working distance：3.3 mm，Thickness of cover glass：1.2mm. | ||
Match the objective | PLL 10X0.25 PHP Working distance：8.8 mm，Thickness of cover glass：1.2mm. | |
The eyepiece tube | Red lens, 30˚ tilt | |
Focusing mechanism | Coarse fretting coaxial focusing with locking and limiting device, fretting cell value :2 m. | |
converter | Four holes (inward-type ball positioning) | |
Objective table | Double-layer mechanical mobile loading platform, moving range: longitudinal 30mm, transverse 75mm. | |
Petri plate1 | The slot size：Ф68mm | |
Petri plate2 | The slot size：The 34 mm (wide) X77.5 mm (length), adaptive petri dish Ф 68.5 mm | |
Condenser system | The working distance of the plate type phase - lined condenser is 30mm. | |
Lighting system | 6V20W halogen lamp with adjustable brightness | |
Color filter | Ground glass, blue and green filters | |
options
| The eyepiece | 16X（Φ11mm），20X(Φ11mm) |
Match the objective | 25X、40X | |
Long working distance phase - lined condenser
| Working distance: 50mm (note: matching objective lens is PLL10X/0.25 PHP2, PLL25X/0.40 PHP2, PLL40X/0.60 PHP2)
| |
CCD joint CCD | 0.5x, 1X, 0.5x with the division | |
camera | USB output: 300/500/10mp | |
