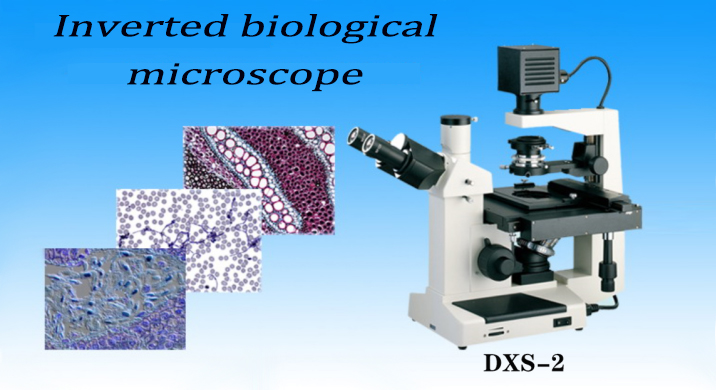

DXS-2Inverted biological microscope

DXS-2Inverted biological microscope

Introduction to the instrument:

Dxs-2 inverted microscope is equipped with large field eyepiece, long working distance achromatic objective lens and long working distance concentrator, and phase lining device, which can observe the unstained transparent living bodies in petri dishes and culture bottles.

The instrument is especially suitable for microscopic study of living cells and tissues, fluids, sediments, etc., and can be used by scientific research, universities, medical treatment, epidemic prevention, agriculture and animal husbandry departments.


Performance Features:

Equipped with large field eyepiece and long anomalous field achromatic objective lens, the field of view is large and clear

Phase lining device is configured, including extra-long distance phase lining condenser, phase lining objective lens and centering telescope

Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value: 2 m

6V30W halogen lamp illumination, adjustable brightness








DXS-2Inverted biological microscope

Standard configuration:

model

DXS-2

The eyepiece

Large WF10X (20 mm) Φ

objective

Achromatic objective lens with long anomaly field PL L 10X/0.25

Achromatic objective lens with long anomaly field PL L 25X/0.40

Achromatic objective lens with long anomaly field PL L 40X/0.60

Long distance flat field achromatic phase contrast objective lens PL L 10X/0.25 PHP2

The eyepiece tube

Red glasses (tilting 30˚, 100% light access)

Focusing mechanism

Coarse fretting coaxial focus, coarse fretting adjustable, with locking and limiting device plate, fretting cell value :2 m.

converter

Four holes (ball internal positioning)

Objective table

Double-layer mechanical mobile (size :224mmX208mm, mobile range :112mmX79mm)

Specimen plane

Suitable for placing Φ 68 mm or 77 mmx29mm culture vessel

Suitable for placing 82mmX57mm culture vessels

Suitable for 96-well culture vessels of 128mmX85mm

Color filter

The blue color filter

Green color filter

Frosted glass

Pull plate type phase lining device

Centering telescope

10X pull plate type phase lining ring plate

Adjustable condenser, NA.=0.4, working distance :50mm

The light source

6V 30W halogen lamp with adjustable brightness
