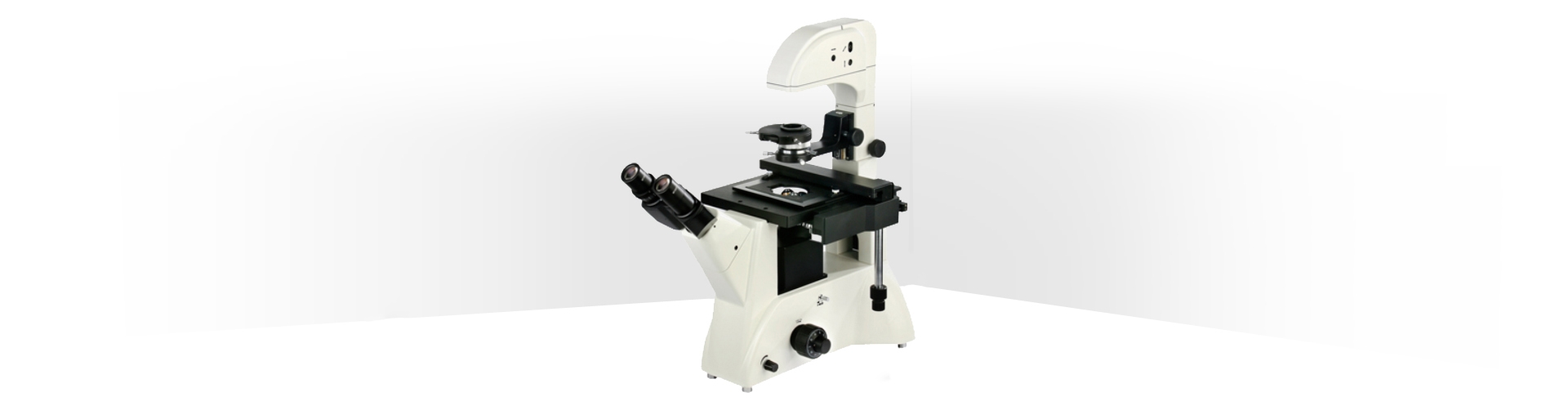

DXS-3DIC Type I inverted phase contrast microscope

DXS-3DIC Type I inverted phase contrast microscope

Dxs-3dic inverted phase contrast microscope (DXS-3DIC) is a new type of multifunctional optical microscope, which USES an excellent infinitely far optical system to provide excellent optical performance.

The compact and stable high rigid body fully embodies the vibration proof requirement of microoperation.

Dismountable mechanical load table adopts coaxial pinion and rack free transmission system to make the transmission more stable and safe.

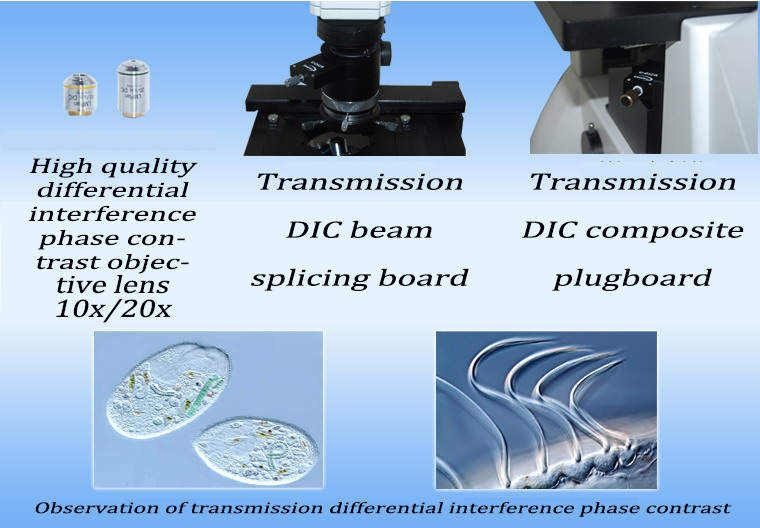

The rotating swing in and swing out concentrator is equipped with the transmission micro-division interferometric phase liner to realize the microscopic observation functions such as transmission differential interferometric phase liner. The modular design makes the function replacement very convenient.

The instrument is suitable for the microscopic observation of transparent tissues, and is applied to scientific research institutes, universities, medical and health, inspection and quarantine, agriculture, animal husbandry and dairy industry and other departments.




DXS-3DIC Type I inverted phase contrast microscope

Standard configuration:

The main parameters

Total magnification

40X~400X(Optional to800X)

Mechanical tube length

Conjugate distance of objective lens

The eye lens

Large field achromatic eyepiece

SWF 10X

Field of view:Ф22mm

Eyepiece interfaceФ30mm

Qi focal distance10mm

Of the eyepiece(TE-3)

binoculars

Hinged binocular, viewing Angle of 45 degrees, pupil spacing of 53 ~ 75 mm.

(Optional triocular head)


objective

magnification

Numerical aperture

Working distance(mm)

Thickness of cover glass(mm)

note

5X

0.12

18.2

-

Differential interference phase contrast objective lens

10X

0.25

20.2

0

20X

0.35

6.0

0

40X

0.60

3.5

1.2

Open field objective lens

10X

0.25

4.3

1.2

Phase phase contrast objective lens

converter

Five-hole converter

condenser

Working distance 55mm, numerical aperture 0.30

Objective table

The moving range is 77mm (longitudinal) x 134.5mm (transverse), and the moving ruler is detachable

Focusing mechanism

Coarse micro coaxial adjustment, micro hand wheel grid planting: 0.002 mm

Petri plate

The tray 1

86 mm (wide) X129.5 mm (length), adaptive petri dish Ф 87.5 mm

The tray 2

The 34 mm (wide) X77.5 mm (length), adaptive petri dish Ф 68.5 mm

The tray 3

57mm (width) X82mm (length)

The light source

5W white light (color temperature 5000 ~ 5500K) LED illuminator, input voltage 3.9 ~ 4.0V
