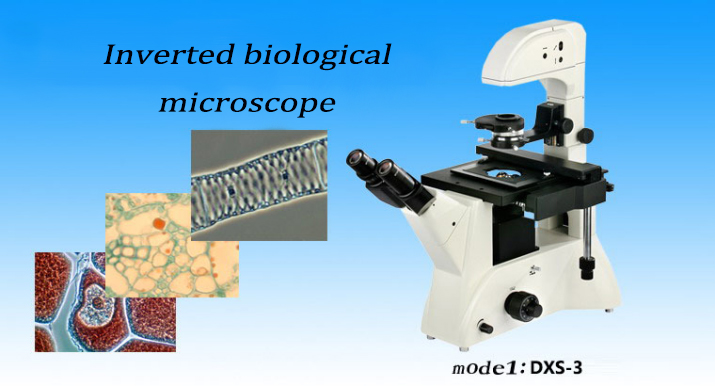

DXS-3Inverted biological microscope
Instrument introduction:
Inverted biological microscope adopts an excellent optical system with infinite distance, and is equipped with a long working distance flat field objective lens and a large field eyepiece. It has a compact and stable high rigid body, which fully embodies the vibration proof requirement of microoperation.
The rotary pendulum in and out focusing system can be used for observation of non-contaminated cultured cells in high culture dishes or cylindrical fluses.
In line with the ergonomic requirements of the ideal design, so that the operation more convenient and comfortable, wider space.
The product is suitable for microscopic observation of cell tissue, transparent liquid tissue and dynamic microscopic observation of cultured tissue in culture dish.
Can be used in scientific research institutes, institutions of higher learning, medical and health, inspection and quarantine, agriculture and animal husbandry and dairy sectors.

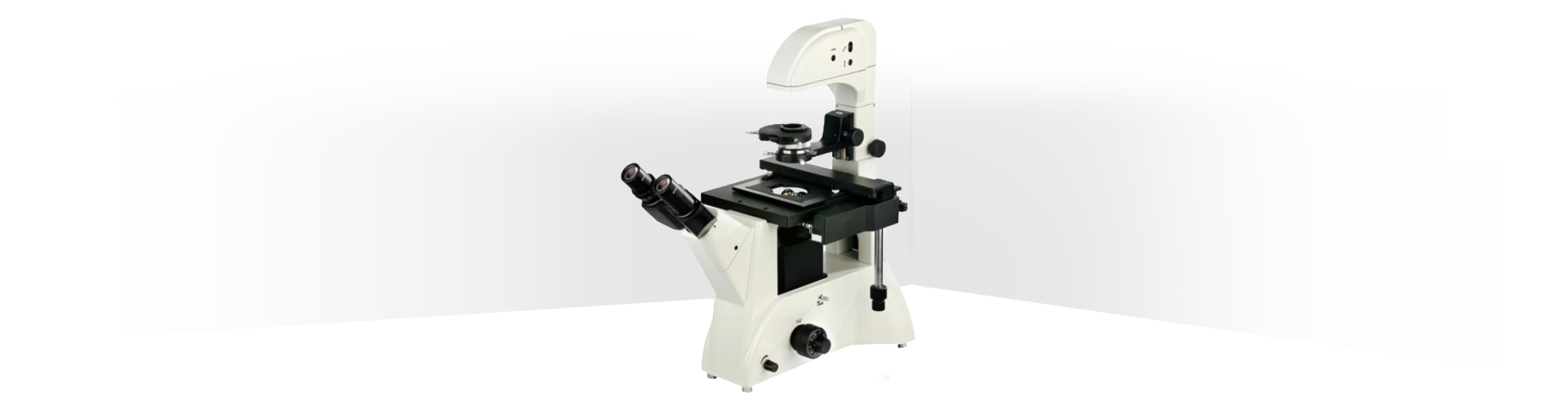

DXS-3Inverted biological microscope
Standard configuration:
Standard configuration | |||
The eyepiece | WF10X view (view Φ 22 mm) | ||
Centering telescope | |||
Infinite distance long working distance flat field achromatic objective lens | objective | PLL 10X0.25 Working distance:4.3 mm,Thickness of cover glass:1.2mm. | |
PLL 20X0.40 Working distance:8.0 mm,Thickness of cover glass:1.2mm. | |||
PLL 40X0.60 Working distance:3.5 mm,Thickness of cover glass:1.2mm. | |||
Match the objective | PLL 10X0.25 PHP2 Working distance:4.3 mm,Thickness of cover glass:1.2mm. | ||
The eyepiece tube | Wine type with tilt of 45˚ and adjustment range of pupil distance of 53~75mm. | ||
Focusing mechanism | Coarse fretting coaxial focusing with locking and limiting device, fretting cell value :2 m. | ||
converter | Five-hole converter | ||
Objective table | Fixed carrier size:227mmX208mm. | ||
Dimensions of glass round carrier plate:Ф118mm. | |||
Mechanical movement size, movement range: transverse (X) 114mm, longitudinal (Y) 77mm | |||
Petri plate 1 | Within the slot size: 86 mm (wide) X129.5 mm (length), adaptive petri dish Ф 87.5 mm | ||
Petri plate 2 | Within the slot size: 34 mm (wide) X77.5 mm (length), adaptive petri dish Ф 68.5 mm | ||
Petri plate 3 | Internal groove size: 57mm (width) X82mm (length) | ||
Condenser system | Long working distance condenser, working distance 55mm, with rotary type phase liner device | ||
Lighting system | 6V30W halogen lamp with adjustable brightness | ||
Color filter | Ground glass, blue and green filters |
