一、仪器用途：

Ⅰ、Instrument application：

TL36系列生物显微镜配置无限远平场消色差物镜和大视野目镜，具有外形美观,成像清晰，视野广阔，操作方便等特点，可广泛应用于生物学、医学、工业、农业等领域，是医疗、教学、科研等单位的理想仪器。

TheTL36 series biological microscope is equipped with an infinite flat field achromatic objective lens and a large field eyepiece, which has the characteristics of beautiful appearance, clear imaging, wide field of view, and easy operation. It can be widely used in biology, medicine, industry, agriculture and other fields, and is an ideal instrument for medical, teaching, scientific research and other units.

二、仪器优势：

Ⅱ、Instrument advantages：

采用优良的无限远光学系统，可提供卓越的光学性能。

Adopting an excellent infinite optical system can provide outstanding optical performance.

流线型的设计理念，与柔和新颖的颜色搭配，使显微镜更具美感。

The streamlined design concept, combined with soft and innovative colors, makes the microscope more aesthetically pleasing.

符合人机工程学要求的理想设计，使操作更方便舒适，空间更广阔。

Ideal design that meets ergonomic requirements, making operation more convenient, comfortable, and spacious.

三、仪器参数：

Ⅲ、Instrument parameters:

*光学系统：配置无限远平场光学系统，整机防霉设计和大视野目镜，具有外形美观,成像清晰，视野广阔，操作方便等特点，可广泛应用于生物学、医学、工业、农业等领域，是医疗、教学、科研等单位的理想仪器.

*Optical System: Equipped with an infinite plan optical system, anti fungus design for the entire machine, and a large field of view eyepiece, it has the characteristics of beautiful appearance, clear imaging, wide field of view, and easy operation. It can be widely used in biology, medicine, industry, agriculture and other fields, and is an ideal instrument for medical, teaching, scientific research and other units.

*观察头装置：镜筒可360度旋转，旋转时镜像中心的位移≤0.06mm；30°倾斜；的铰链式双目镜观察（左右两系统放大率差≤2.0%；零视度时目镜端面位置差≤0.1mm）和第三方连接口，瞳距调节范围48-75mm，固定观察筒头部为内六角螺钉或选择便携式螺钉。

*Observation head device: The lens barrel can rotate 360 degrees, and the displacement of the mirror center during rotation is ≤ 0.06mm; inclined at 30 °; The hinged binocular observation (magnification difference between the left and right systems ≤ 2.0%; position difference of the eyepiece end face at zero view ≤ 0.1mm) and third-party connection port, interpupillary distance adjustment range of 48-75mm. The fixed observation tube head is either an internal hexagonal screw or a portable screw.

*目镜配置：随机配置高眼点设计的目镜WF10X/22mm；目镜放大率准确度不超过±2%，目镜筒上有卡槽设计可将目镜锁紧定位防止掉落。双目视度可调，使双目观察更加容易。

*Eyepiece configuration: Randomly configure high eye point design eyepieces WF10X/22mm; The accuracy of eyepiece magnification does not exceed ± 2%, and there is a slot design on the eyepiece barrel to lock and position the eyepiece to prevent it from falling off. The binocular vision is adjustable, making binocular observation easier.

*物镜：宽带镀膜EF-N195纯铜制无限远平场消色差物镜；物镜放大率准确度不超过±5%；4X、10X、40X(弹簧)、100X(弹簧、油)；物镜的误差性10-40齐焦≤0.06mm；40-100齐焦≤0.03mm。

*Objective: Wide band coated EF-N195 pure copper infinite plan achromatic objective lens; The accuracy of objective magnification shall not exceed ± 5%; 4X, 10X, 40X (spring), 100X (spring, oil); The error of the objective lens is 10-40 with a focal length of ≤ 0.06mm; 40-100 focal length ≤ 0.03mm.

*转换器：金属材质四孔定位内倾式转换器；定位稳定性≤0.006mm，更换切片时无需升、降载物台，避免了外倾式物镜转换器使用过程中容易损伤物镜的种种操作不便。

*Converter/Nose piece: Metal material four hole positioning inward facing converter; The positioning stability is ≤ 0.006mm, and there is no need to raise or lower the stage when replacing the slice, avoiding the inconvenience of damaging the objective lens during the use of the outward tilting objective lens converter.
*载物台：三角导轨XY复合式机械移动载物台；侧向受5N水平方向作用力的不重复性≤0.005，防腐、耐磨。矩形，尺寸为190X140mm，行程60×90mm，最小读数值0.1 mm。

*Stage: Triangular guide XY composite mechanical moving stage; Non repeatability of lateral 5N horizontal force ≤ 0.005, anti-corrosion and wear-resistant. Rectangular, size 190X140mm, stroke 60 × 90mm, minimum reading value 0.1 mm.

*调焦机构：粗微调同轴，带有手轮松紧调节装置及限位定位装置。在载物台操作手轮的两侧设有微调焦机构，用于精确调焦；两侧有粗微调焦旋钮，具有过载保护装置,调焦范围:25mm,微调格值最小格值:0.002mm。

*Focusing mechanism: Coarse and fine adjustment coaxial, equipped with handwheel tension adjustment device and limit positioning device. There are fine adjustment focus mechanisms on both sides of the operating handwheel of the stage for precise focusing; There are coarse and fine focusing knobs on both sides, with overload protection device. The focusing range is 25mm, and the minimum fine adjustment grid value is 0.002mm.

*聚光镜：N.A.1.25阿贝聚光镜，国内首创托架式装置板，有效控制聚光系统偏离问题，精确限位设计齿轮齿条结构，确保更为准确的观察高度。聚光镜为金属材料，不含塑料件。高度可自行调节。

*Focusing lens: N.A.1.25 Abbe focusing lens, the first bracket type device board in China, effectively controls the deviation problem of the focusing system, and the precise limit design gear rack structure ensures more accurate observation height. The spotlight is made of metal material and does not contain plastic parts. The height can be adjusted by oneself.

*照明：原装生产功率为的3W LED冷光源照明，柯勒照明,亮度可调，寿命可达10万小时以上集光镜座不能轻易取下，防止经常取下造成光路中心的改变，而影响观察效果。

*Lighting: The original production power is 3W LED cold light source lighting, Koehler Illuminator, with adjustable brightness and a lifespan of over 100000 hours. The light collecting mirror holder cannot be easily removed to prevent frequent removal from changing the center of the light path and affecting the observation effect.

*背板：设计有便携提手可供使用者进行搬离换位。

*Backboard: Designed with a portable handle for users to move and reposition.

*附加功能：具备暗场及明场观察功能。

*Additional features: It has the ability to observe both dark and bright fields.

四、仪器细节详情图：

Ⅳ、Instrument detailed pictures:

●人性化设计把手

●Humanized design handle

采用人体工程学原理，精心设计的把手符合人手握持的自然姿态，能够使用户更稳定地握住显微镜，也帮助用户在长时间使用显微镜时减少手部疲劳感。

Adopting ergonomic principles, the carefully designed handle conforms to the natural posture of human hand grip, enabling users to hold the microscope more stably and reducing hand fatigue during prolonged use.

●三角导轨XY复合式机械移动载物台

●Triangular guide XY composite mechanical moving stage

稳固地支撑和固定样品，确保在观察过程中样品的位置和形态的稳定，侧向受5N水平方向作用力的不重复性≤0.005，防腐、耐磨，最小读数值0.1 mm。

Stably support and fix the sample, ensuring the stability of its position and shape during observation. The non repeatability of the lateral 5N horizontal force should be ≤ 0.005. It should be corrosion-resistant and wear-resistant, with a minimum reading value of 0.1 mm.

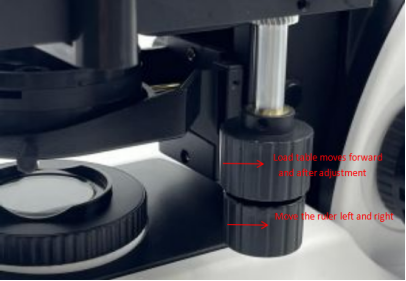

●XYZ Mobile Handwheel

该设计可以通过直观的手动操作来控制操作台的移动。具有较大的移动范围和灵活性。实验者可以根据需要调整手轮的位置以便更好地观察和操作样品。

This design can control the movement of the console through intuitive manual operation. Has a large range of movement and flexibility. Experimenters can adjust the position of the handwheel as needed to better observe and manipulate the sample.

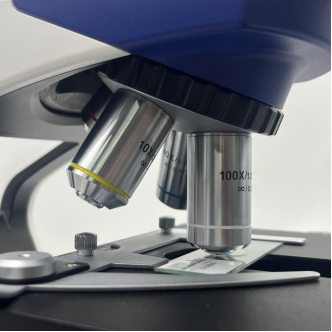

●四孔定位内倾式转换器

●Four hole positioning inward tilting converter

金属材质四孔定位内倾式转换器。主要作用是转换不同放大倍数的物镜。更换切片时无需升、降载物台，可以避免使用过程中容易损伤物镜的种种操作。

Metal material four hole positioning inward tilting converter. The main function is to convert objective lenses with different magnifications. When replacing slices, there is no need to raise or lower the stage, which can avoid various operations that may damage the objective lens during use.

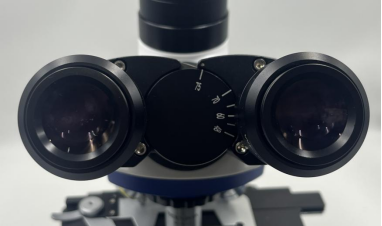

●Eyepiece configuration and pupil spacing

为了适应不同用户的个性化需求，瞳间距可调节范围在48毫米到75毫米之间，确保每位用户可以根据自身条件进行精确设置。高眼点设计的目镜双目视度可调，使双目观察更加容易,为用户提供更为舒适的使用体验。

In order to meet the personalized needs of different users, the adjustable range of pupil spacing is between 48mm and 75mm, ensuring that each user can make precise settings according to their own conditions. The eyepiece with high eye point design has adjustable binocular vision, making binocular observation easier and providing users with a more comfortable user experience.

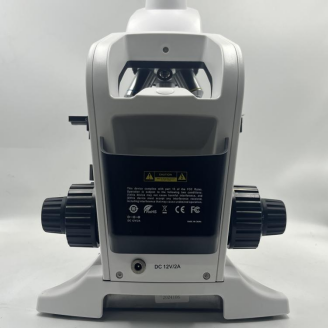

●电缆存放柜

●Cable storage cabinet

专为电缆管理而设计的存储设备，可以有效地存放和保护电源线免受外界因素的损害，如尘土、潮湿和撞击等。这不仅可以延长电缆的使用寿命，还能确保设备的安全稳定运行。存放柜还能有效减少线缆的纠缠和损坏，从而避免了不必要的维修和更换成本。

A storage device designed specifically for cable management that can effectively store and protect power cords from external factors such as dust, moisture, and impact. This not only extends the service life of the cable, but also ensures the safe and stable operation of the equipment. The storage cabinet can effectively reduce cable entanglement and damage, thereby avoiding unnecessary maintenance and replacement costs.

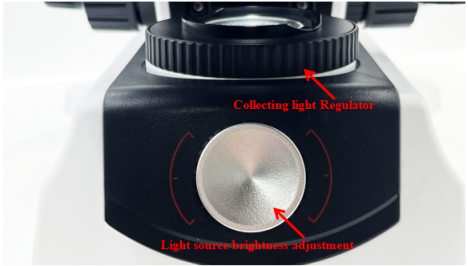

●亮路调节器

●Brightness regulator

该调节器是用于调整显微镜光路中光线强度和均匀性的装置，通过旋转调节光源的亮度，旋钮的调节方式也符合人类的手部操作习惯。这种人性化的设计使得用户在使用亮度调节器时更加得心应手，提高了操作效率和用户体验，从而精确地调整到最适合自己的亮度。

This regulator is a device used to adjust the intensity and uniformity of light in the microscope's optical path. It adjusts the brightness of the light source by rotating it, and the adjustment method of the knob also conforms to human hand operation habits. This humanized design makes it easier for users to use the brightness adjuster, improving operational efficiency and user experience, thereby accurately adjusting to the most suitable brightness for themselves.

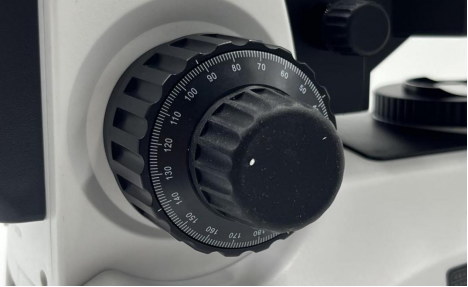

●粗准焦和细准焦调节

●Adjustment of coarse and fine focus

通过粗准焦调节和细准焦调节，确保样本在视野中清晰可见，从而提高观察效果和准确性。使用带有刻度的调节器，用户可以轻松地调整显微镜的焦距。

By adjusting the coarse and fine focus, the sample is ensured to be clearly visible in the field of view, thereby improving observation effectiveness and accuracy. By using a graduated adjuster, users can easily adjust the focal length of the microscope.

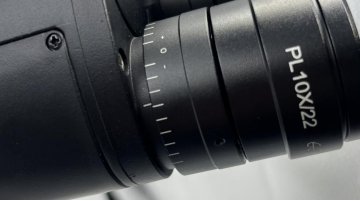

●高眼点视度调节

●High eye point visual acuity adjustment

观察者能够通过显微镜清晰地观察到标本像，通过调节显微镜的视度调节环，可以修正观察者双眼视度的差异，使得每只眼睛都能够通过相应的目镜观察到清晰、锐利的图像。确保用户能够在使用显微镜时获得最佳的视觉体验。

The observer can clearly observe the specimen image through the microscope. By adjusting the visual acuity variable diopter ring of the microscope, the difference in visual acuity between the observer's eyes can be corrected, so that each eye can observe a clear and sharp image through the corresponding eyepiece. Ensure that users can have the best visual experience while using the microscope.
